Nitecore EDC09 Flashlight 1600 Lumens - Swivel Head 102° - 3 Color Temperatures - Rechargeable USB-C

The Nitecore EDC09 combines 1600 lumens output, 153-meter range and adjustable 102° swivel head for hands-free multi-angle lighting. Equipped with 2 quad-core NiteLab MCT UHE LEDs with dual optical TIR lenses offering 3 color temperatures with exceptional CRI (97/83/73), this 114g flat profile EDC light integrates 1100mAh USB-C rechargeable battery in 1h20, IPX6 certification, 2-meter impact resistance and versatile lighting modes. Magnetic tail, two-way stainless steel clip, runtime up to 250h.

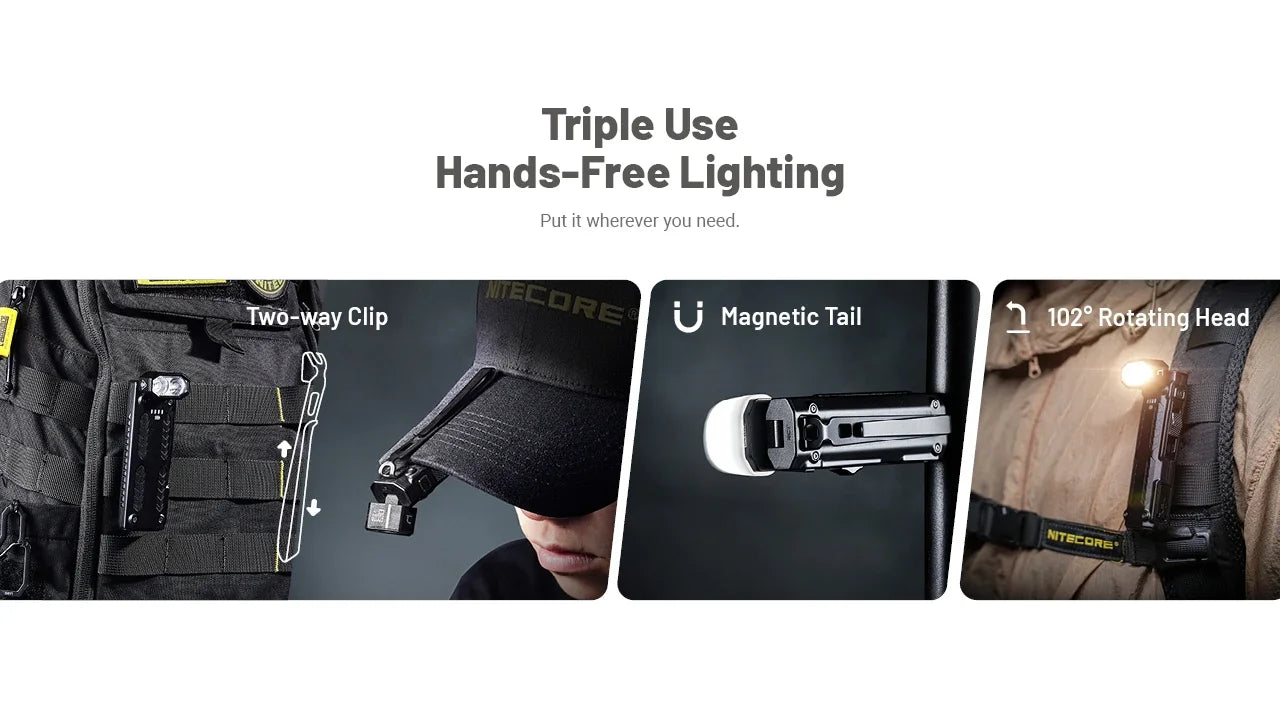

102° Swivel Head and Hands-Free Versatility

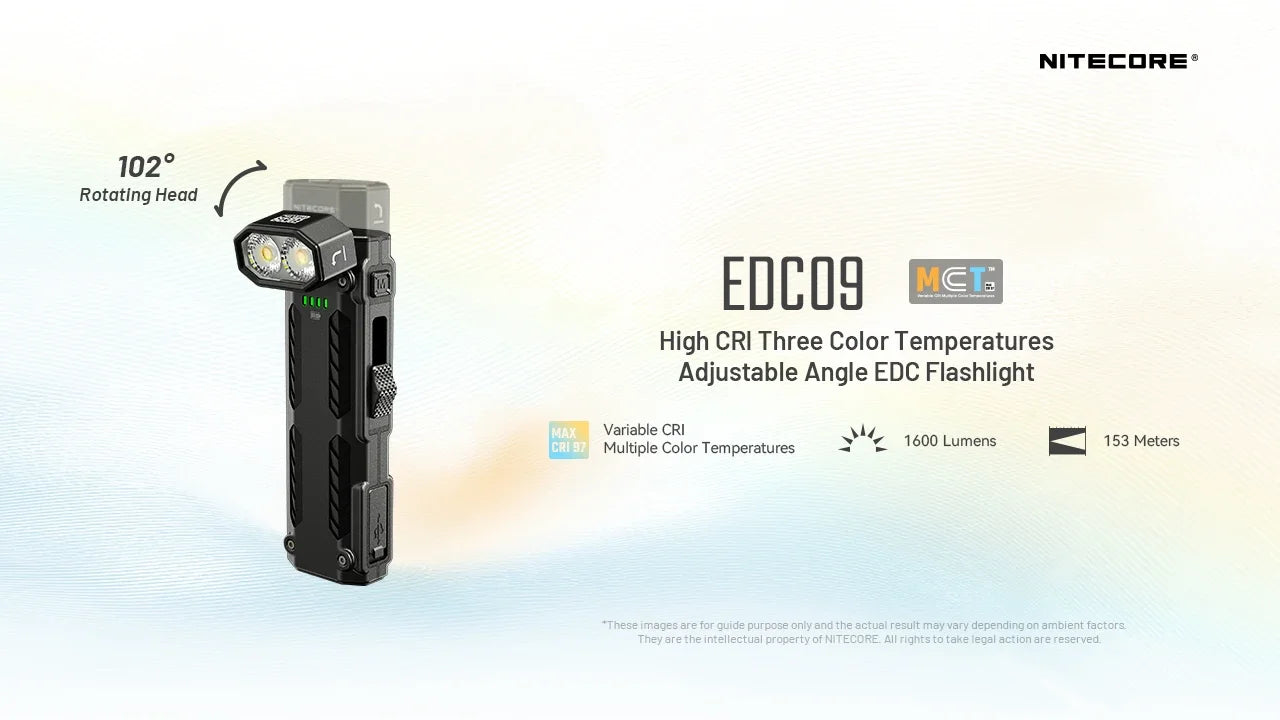

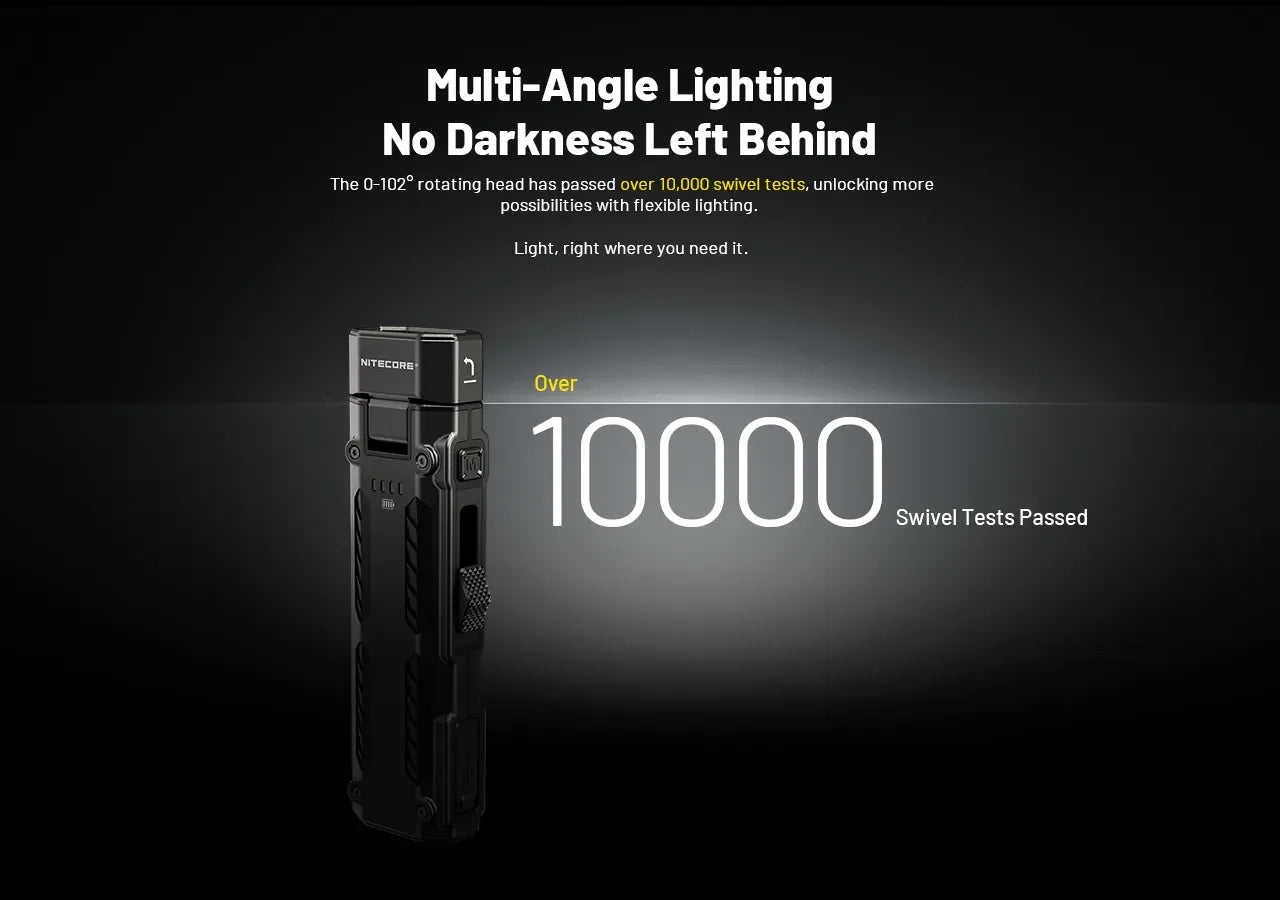

The adjustable 102° swivel head tested over 10,000 times provides precise directional control to easily illuminate tight spaces, camp setups, repairs or dark paths in hands-free mode. The MCT system with 3 switchable temperatures: warm white 3000K (CRI 97) for accurate color rendering, neutral white 4500K (CRI 83) for natural illumination, cool white 6500K (CRI 73) for long-range clarity — three lighting styles in one flashlight. Magnetic tail and two-way stainless steel clip enable quick, stable placement. 1100mAh USB-C rechargeable battery offers maximum runtime, battery level indicators and color temperature memory function.

Stainless Steel Construction and Optimized EDC Design

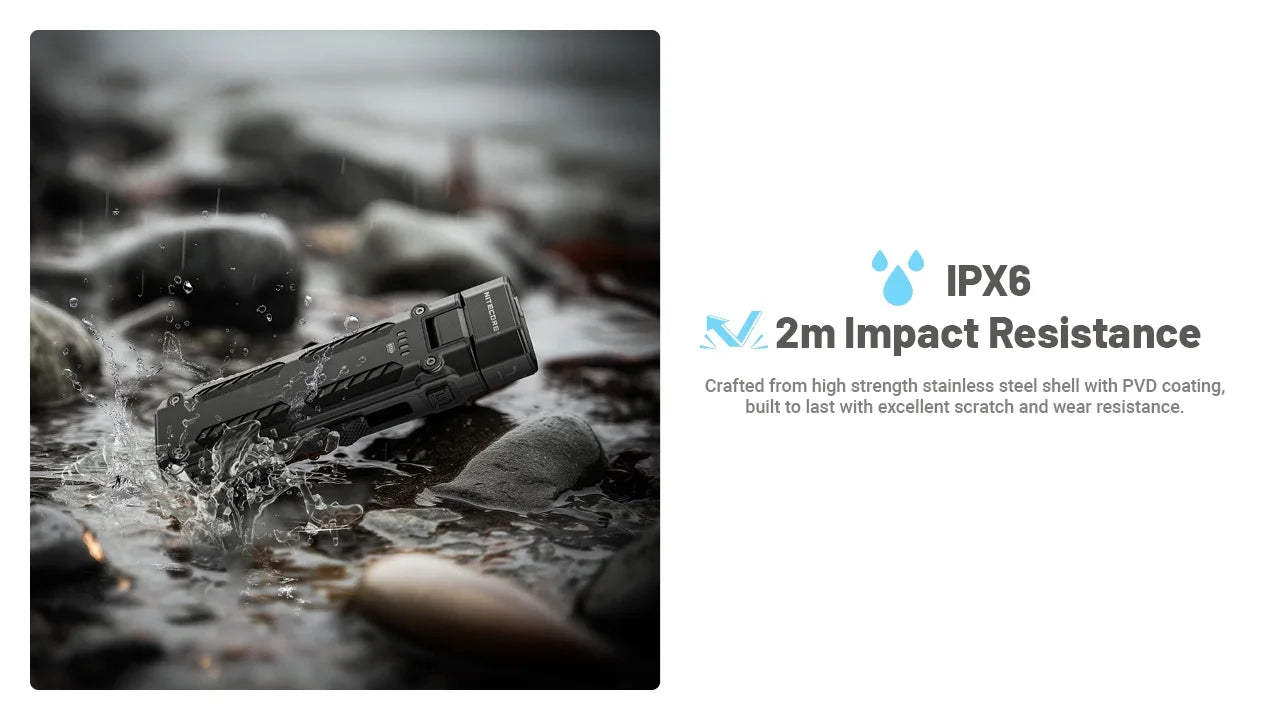

Designed for demanding environments and everyday carry, the EDC09 combines high-strength stainless steel with PVD coating in ultra-compact flat profile. IPX6 protection against water splashes and 2-meter impact resistance ensure field reliability. Intuitive slide switch for On/Off and brightness adjustment, M button for temperature switching, included diffuser for soft ambient lighting. Soft, uniform beam facilitates close-range precision work, ATR module prevents overheating. Adaptable and reliable tool for everyday carry and demanding use.

Operating Instructions

Slide Switch / M Button: The EDC09 has a slide switch for On/Off and brightness, and an M button for advanced functions.

Charging: The product is equipped with an intelligent charging system. Use a USB-C cable to connect an external power source (5V/2A wall adapter, power bank or other charging device) to the USB-C port. Charging time: approximately 1h20 (with 5V/2A adapter). During charging, the green power indicators progressively light up, transitioning from flashing to steady light to indicate battery level. Once charging is complete, the process stops automatically and the indicators remain continuously lit. The product can operate normally during charging. Standby time after full charge: approximately 12 months.

Power ON/OFF: When the light is off, slide the slide switch toward the head to turn it on. When the light is on, slide the slide switch backward to the final position to turn it off.

Brightness level adjustment: Slide the slide switch to adjust the brightness level (LOW / MID / HIGH).

Color temperature switching: When the light is on, briefly press the M button to cycle through the following color temperatures: Neutral white → Warm white → Cool white. Note: The product has a color temperature memory function. When reactivated, it automatically returns to the last mode used.

ULTRALOW mode activation: When the light is off, hold the M button while sliding the switch toward the head to activate ULTRALOW.

Warning Flash mode: When the light is on, hold the M button to activate Warning Flash. To return to the previous state, simply press the M button once briefly.

ATR (Advanced Temperature Regulation): The integrated ATR technology adjusts the EDC09's power according to operating conditions and ambient environment to maintain optimal performance.

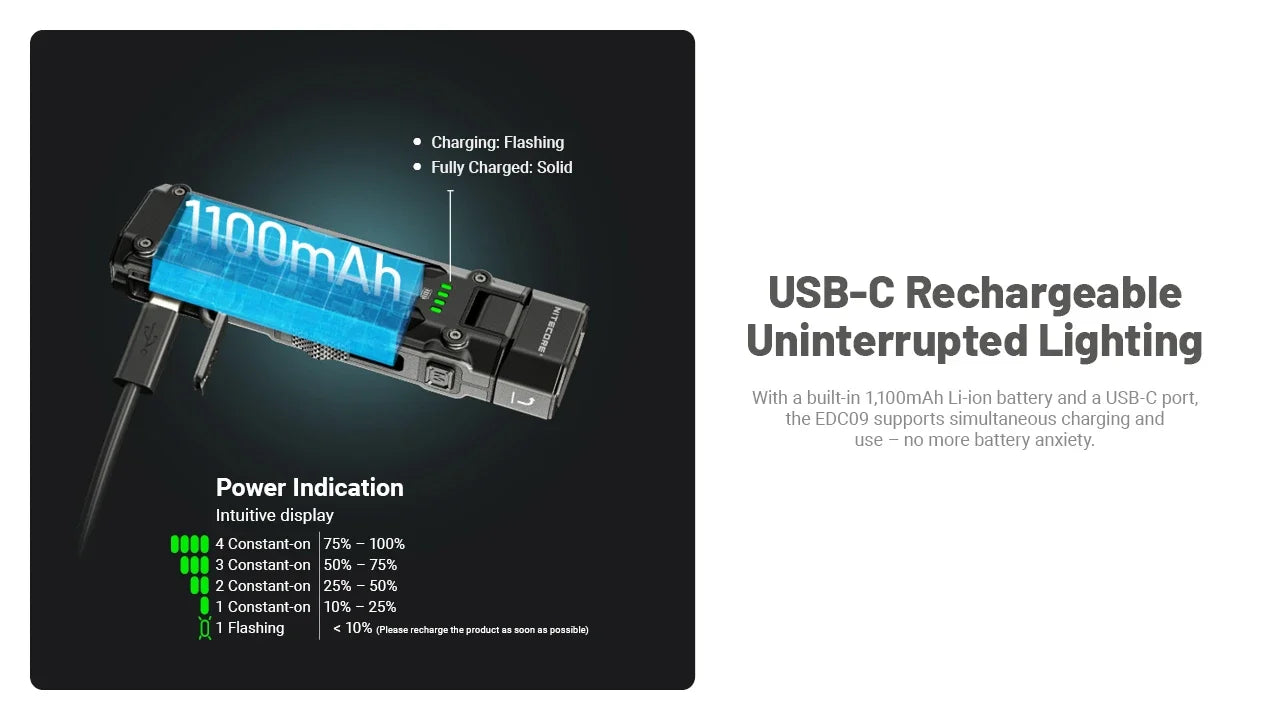

Power indication: After turning on, the green power indicators display the remaining charge level and automatically turn off after 3 seconds. Indicator status: 4 steady lights = 75%-100%, 3 steady lights = 50%-75%, 2 steady lights = 25%-50%, 1 steady light = 10%-25%, 1 flashing light = less than 10% (please recharge as soon as possible). Low battery indication: when charge is below 10%, a green indicator flashes, while brightness may decrease or the light may become momentarily unresponsive.

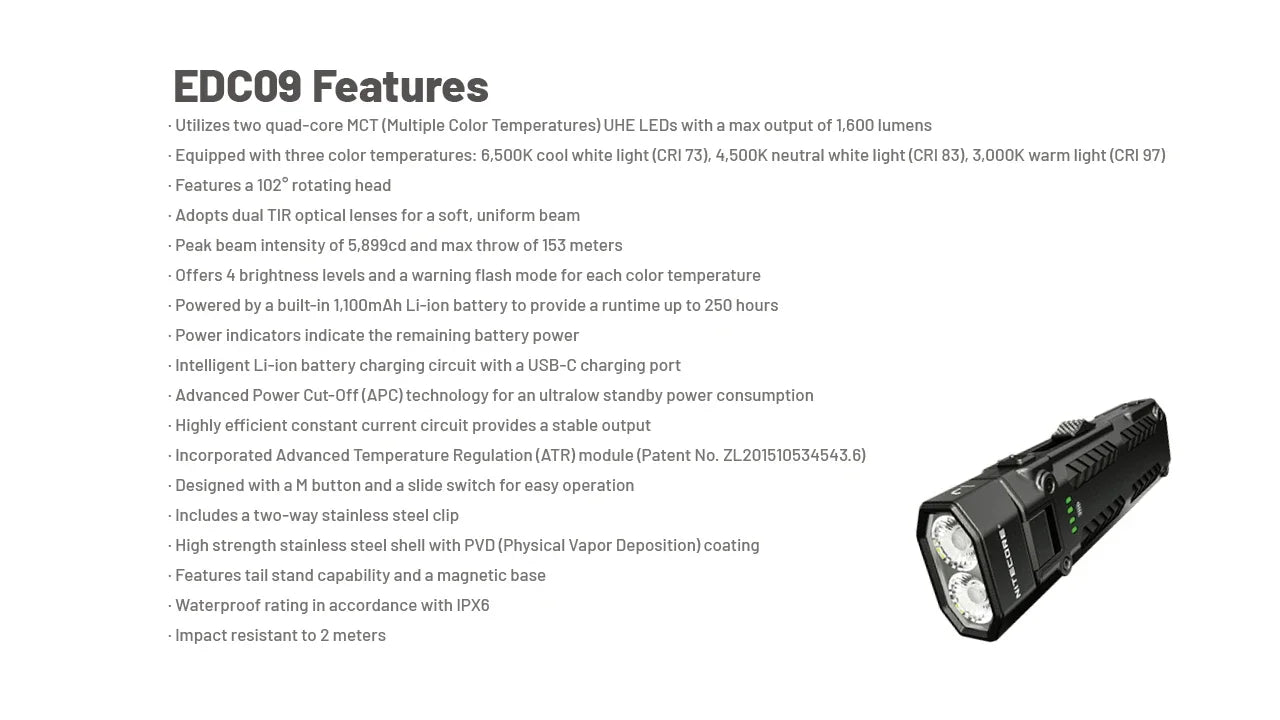

Specifications

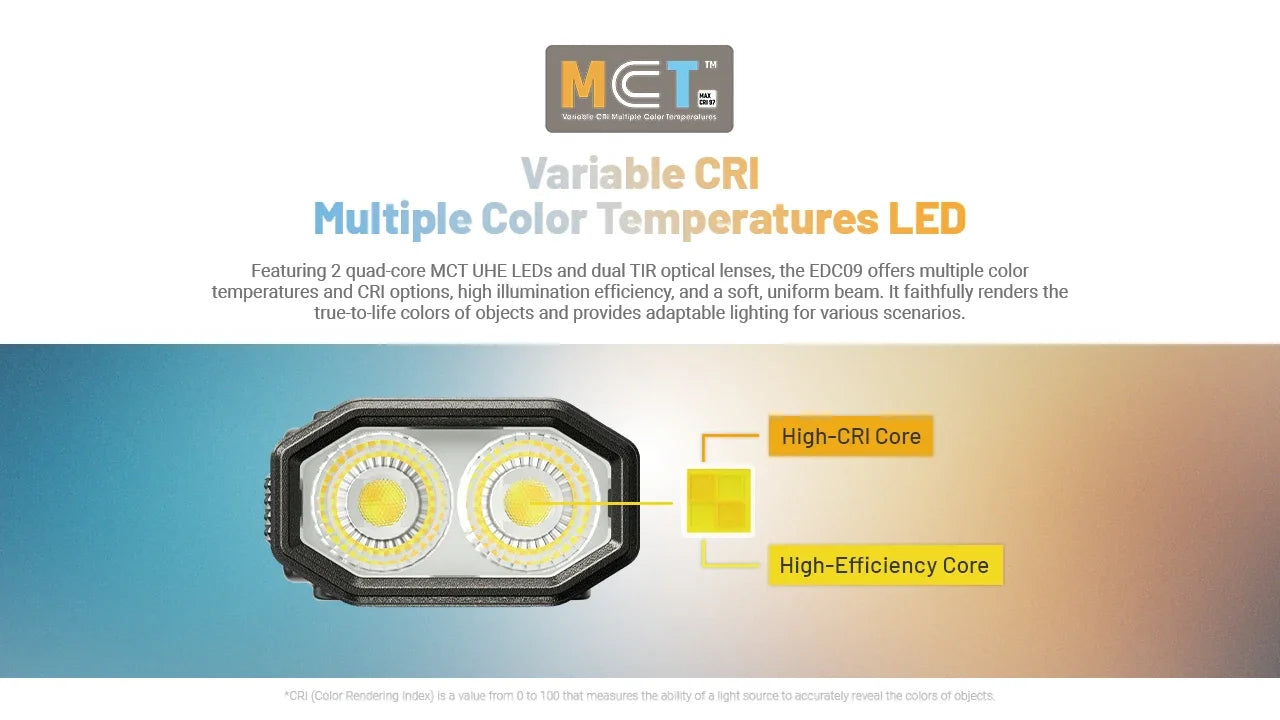

• 2 quad-core NiteLab MCT UHE LEDs with dual optical TIR lenses
• Beam type: Soft and uniform
• Maximum output: 1600 lumens
• Maximum range: 502 feet / 153 meters
• Maximum beam intensity: 5899cd
• Swivel head: Adjustable 102° (tested over 10,000 times)
• Color temperatures: 3 options (Warm 3000K CRI 97, Neutral 4500K CRI 83, Cool 6500K CRI 73)

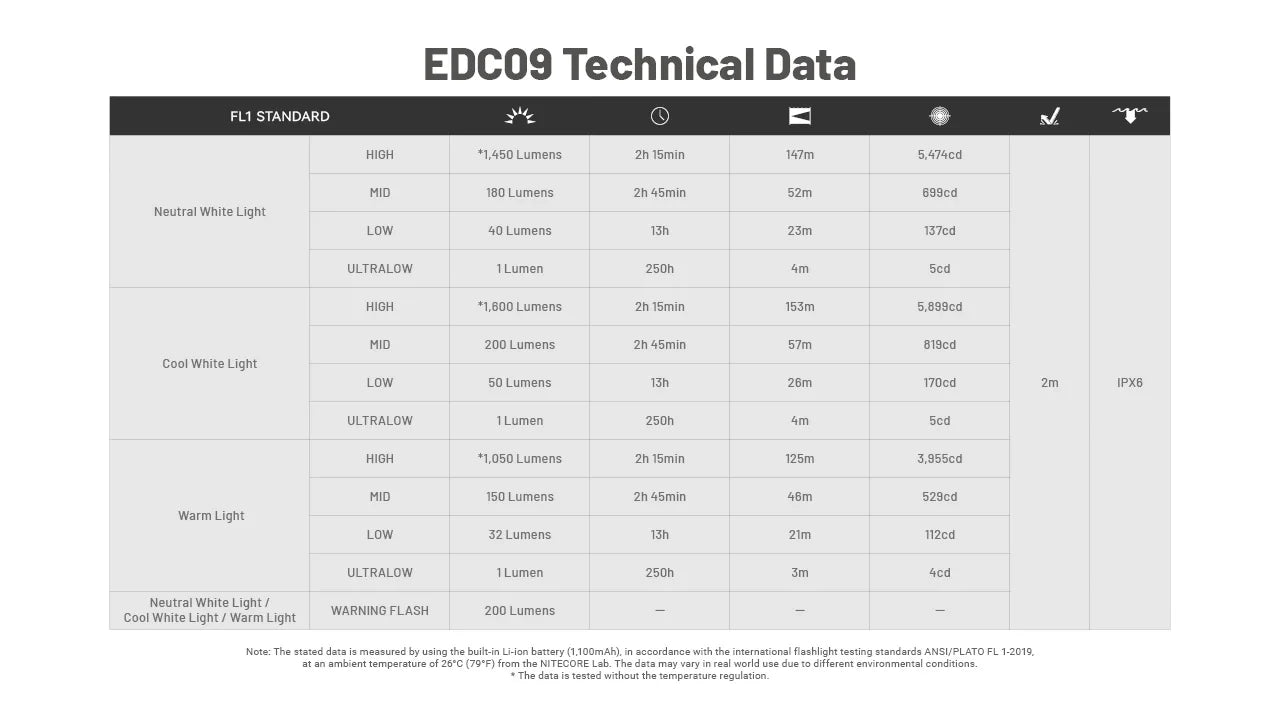

• 4 levels + Warning Flash per color temperature:

Neutral White Light 4500K (CRI 83):

• HIGH: 1490 ANSI Lumens (2h16) 482 feet / 147 meters 5474cd
• MID: 180 ANSI Lumens (2h45) 171 feet / 52 meters 689cd
• LOW: 40 ANSI Lumens (13h) 82 feet / 25 meters 157cd
• ULTRALOW: 1 ANSI Lumen (250h) 13 feet / 4 meters 5cd

Cool White Light 6500K (CRI 73):

• HIGH: 1600 ANSI Lumens (2h16) 502 feet / 153 meters 5899cd
• MID: 200 ANSI Lumens (2h45) 187 feet / 57 meters 818cd
• LOW: 50 ANSI Lumens (13h) 85 feet / 26 meters 170cd
• ULTRALOW: 1 ANSI Lumen (250h) 13 feet / 4 meters 5cd

Warm White Light 3000K (CRI 97):

• HIGH: 1050 ANSI Lumens (2h16) 410 feet / 125 meters 3955cd
• MID: 150 ANSI Lumens (2h45) 157 feet / 48 meters 528cd
• LOW: 32 ANSI Lumens (13h) 69 feet / 21 meters 112cd
• ULTRALOW: 1 ANSI Lumen (250h) 10 feet / 3 meters 4cd
• Warning Flash: 200 ANSI Lumens (all temperatures)
• Power source: Integrated 1100mAh Li-ion USB-C rechargeable battery with intelligent charging circuit
• Maximum runtime: 250 hours (Ultralow mode)
• Charging port: USB-C (5V⎓2A)
• Charging time: 1h20 (with 5V/2A adapter)
• Simultaneous charging and use: Yes
• Battery indicator: 5 levels displayed
• Memory function: Color temperature memorized
• Technology: ATR (Advanced Temperature Regulation)
• Materials: High-strength stainless steel with PVD coating
• Clip: Two-way stainless steel
• Magnetic tail: Yes
• Standing capability: Yes
• Controls: Slide switch + M button

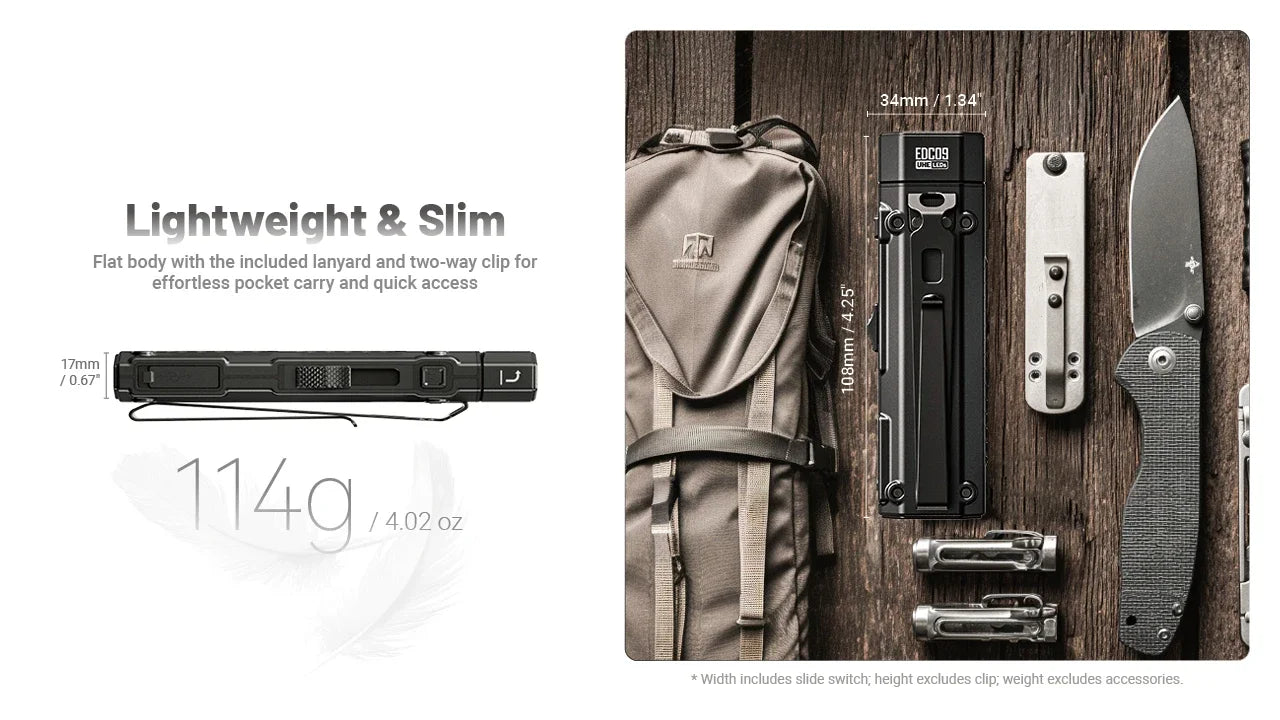

• Dimensions: 4.25" / 108mm (L) x 1.34" / 34mm (W) x 0.67" / 17mm (T)
• Weight: 4.02oz / 114g
• Impact resistance: 6.6 feet / 2 meters
• Waterproof rating: IPX6 (resistant to water splashes)

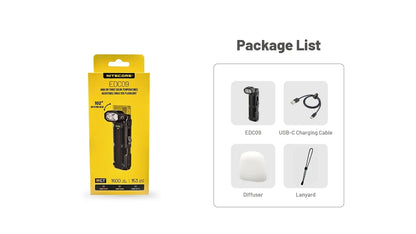

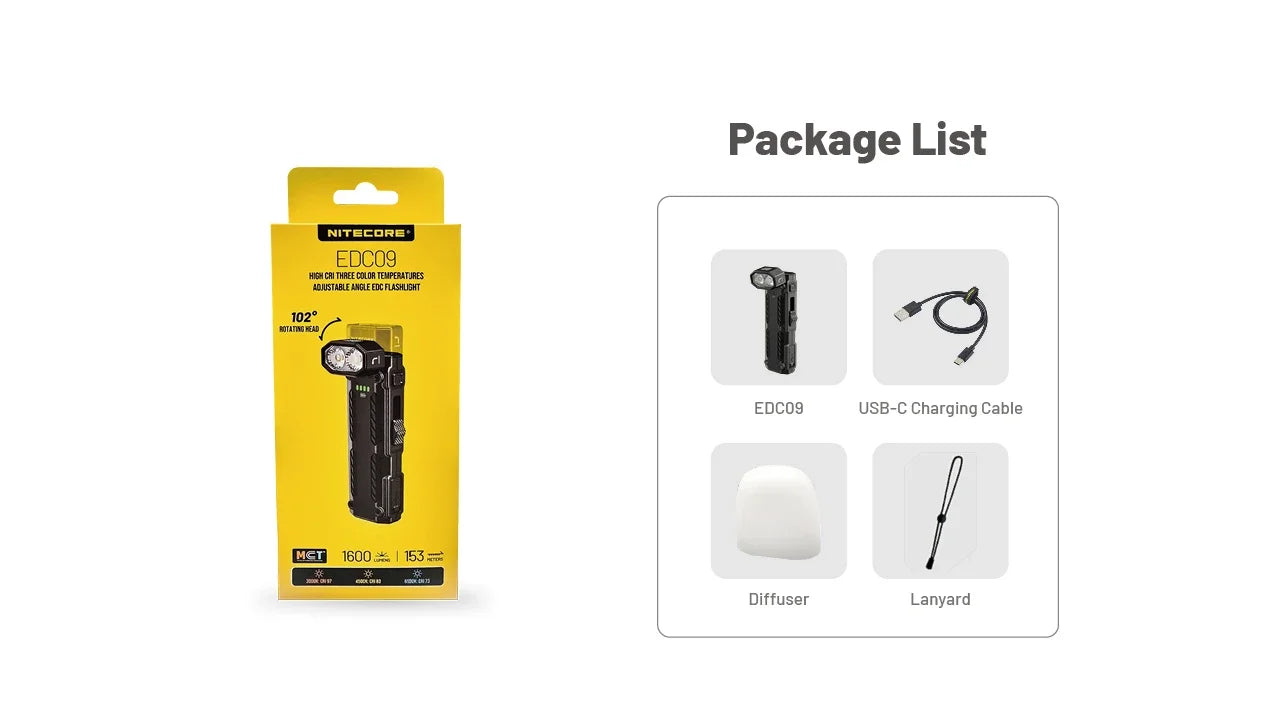

Box contents

• 1 Nitecore EDC09 EDC Flashlight (with integrated battery)
• 1 USB-C charging cable

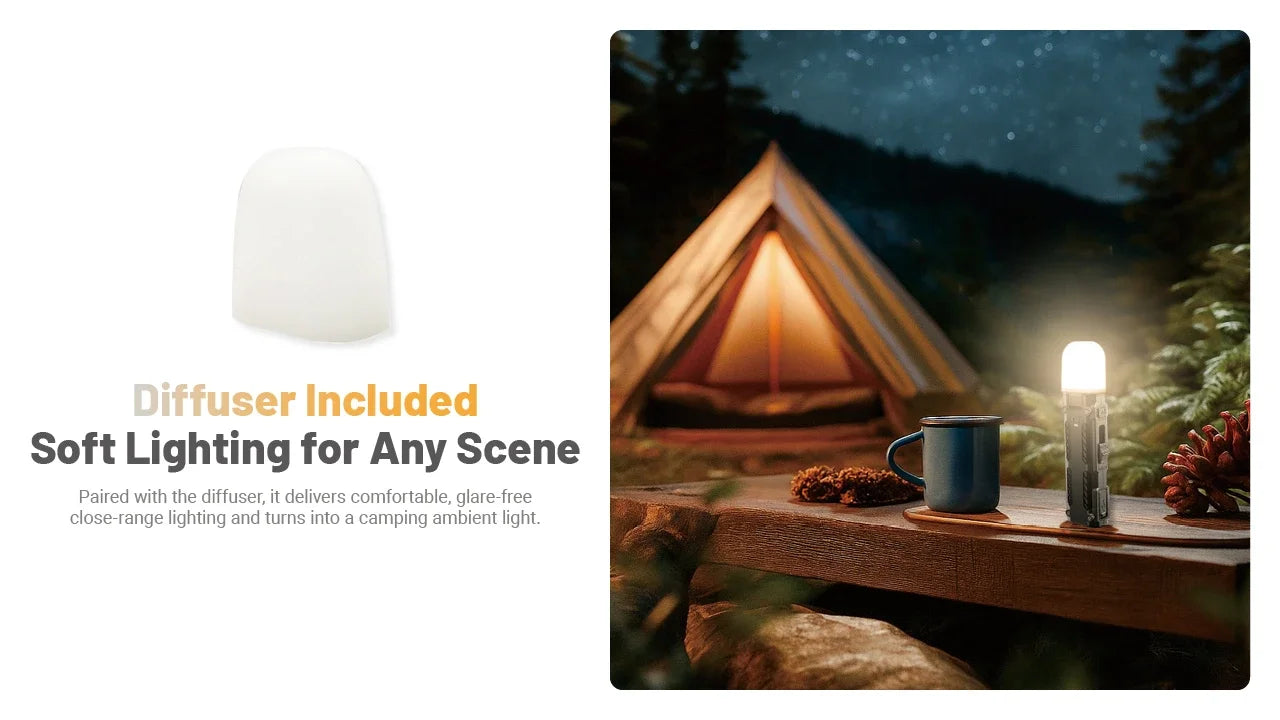

• 1 Diffuser
• 1 Lanyard
• 1 User manual
