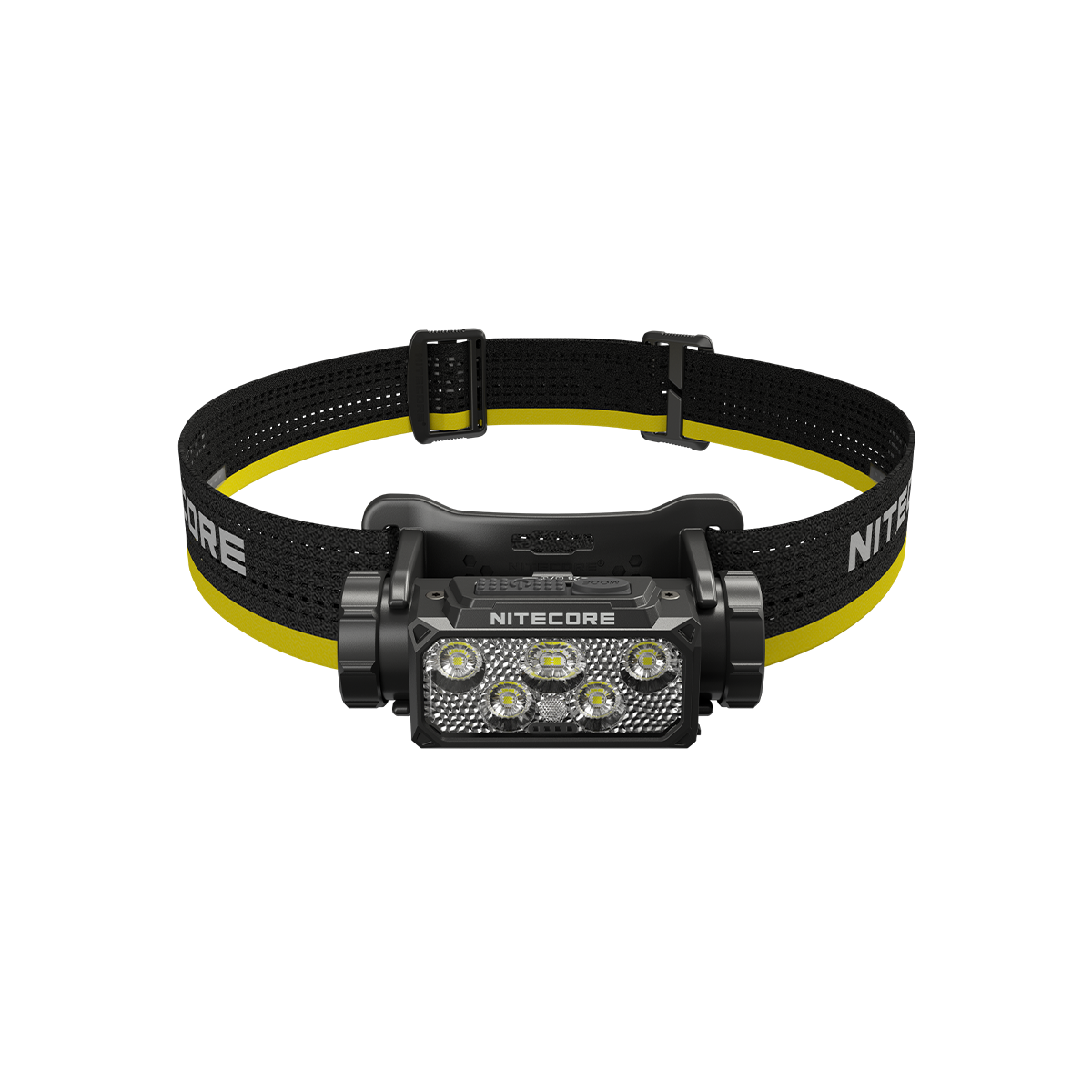

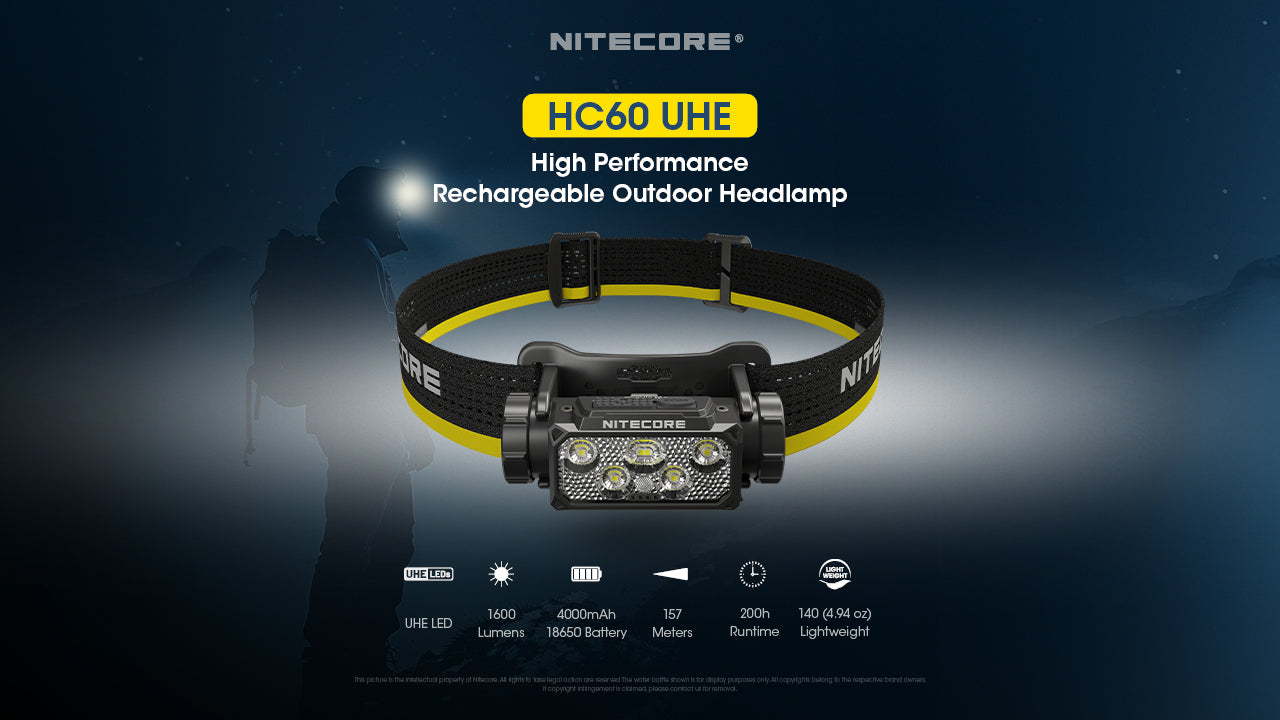

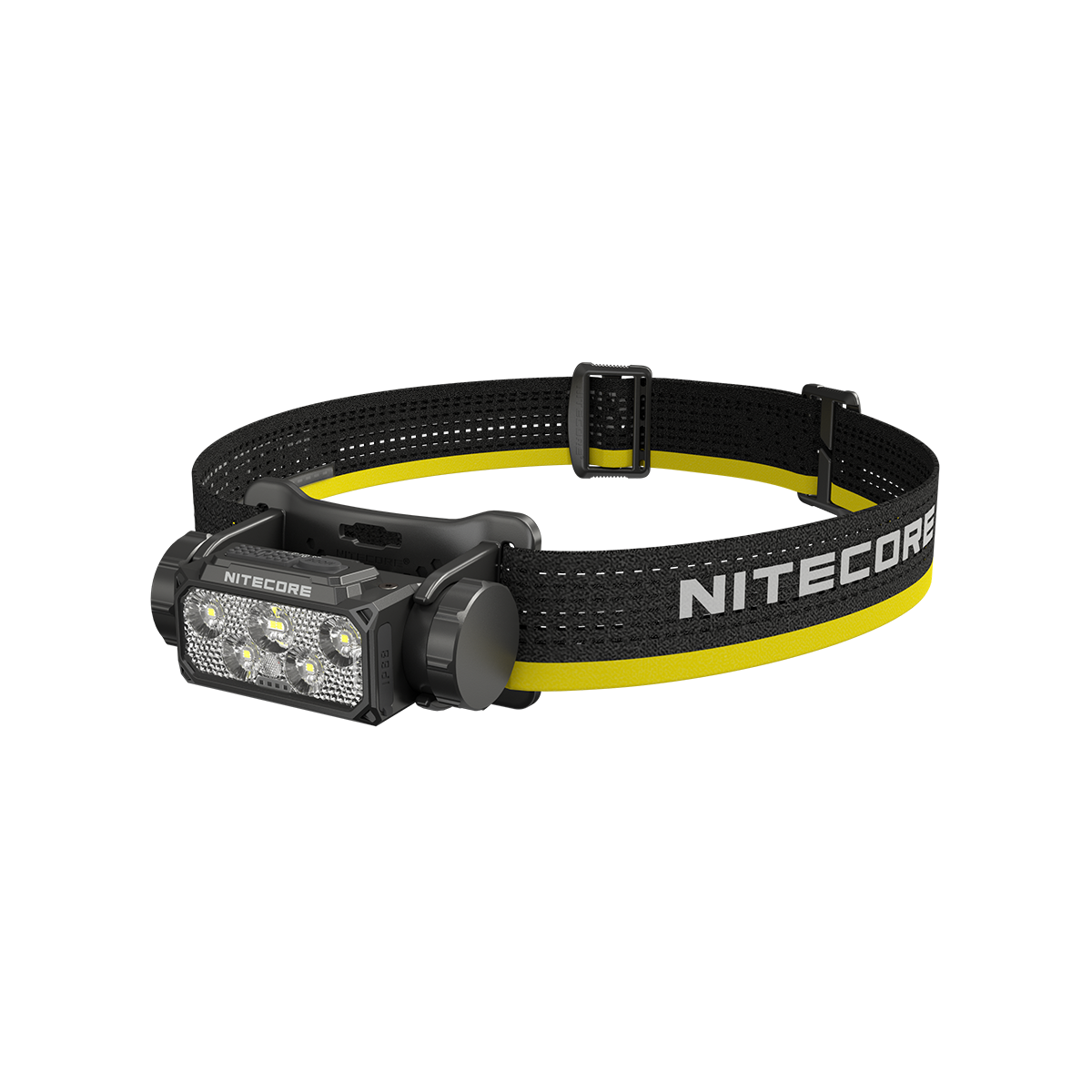

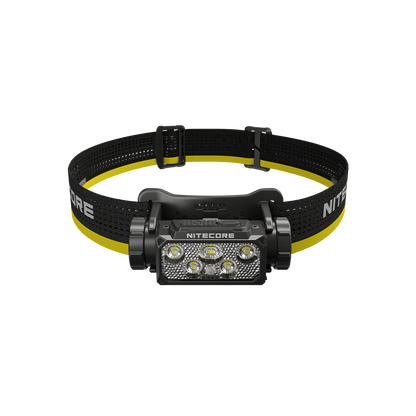

Nitecore HC60 UHE Headlamp 1600 Lumens - 18650 4000mAh battery

The Nitecore HC60 UHE headlamp offers a maximum output of 1600 lumens with a reach of 157 meters, ideal for outdoor activities, caving, trekking and nighttime interventions. Equipped with 6 NiteLab UHE LEDs and red auxiliary LEDs with dual control system. Lightweight and compact, this 140g headlamp certified IPX8 combines performance and practicality for all your lighting needs.

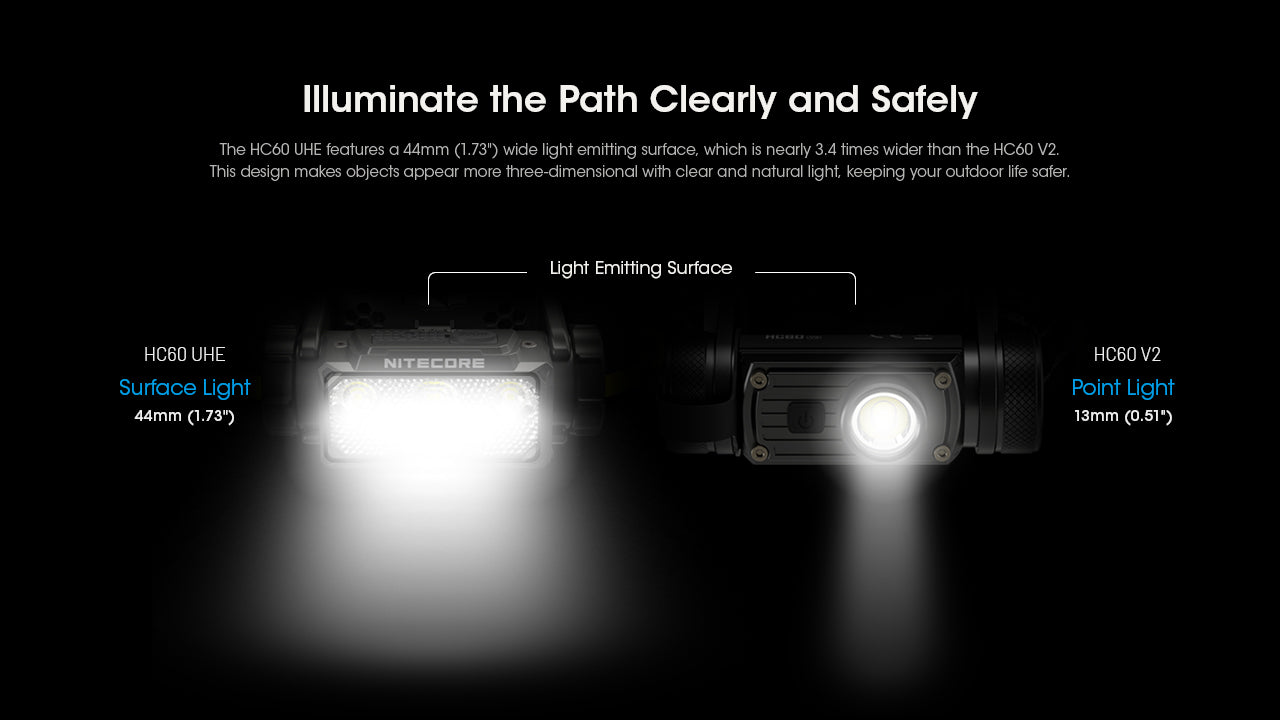

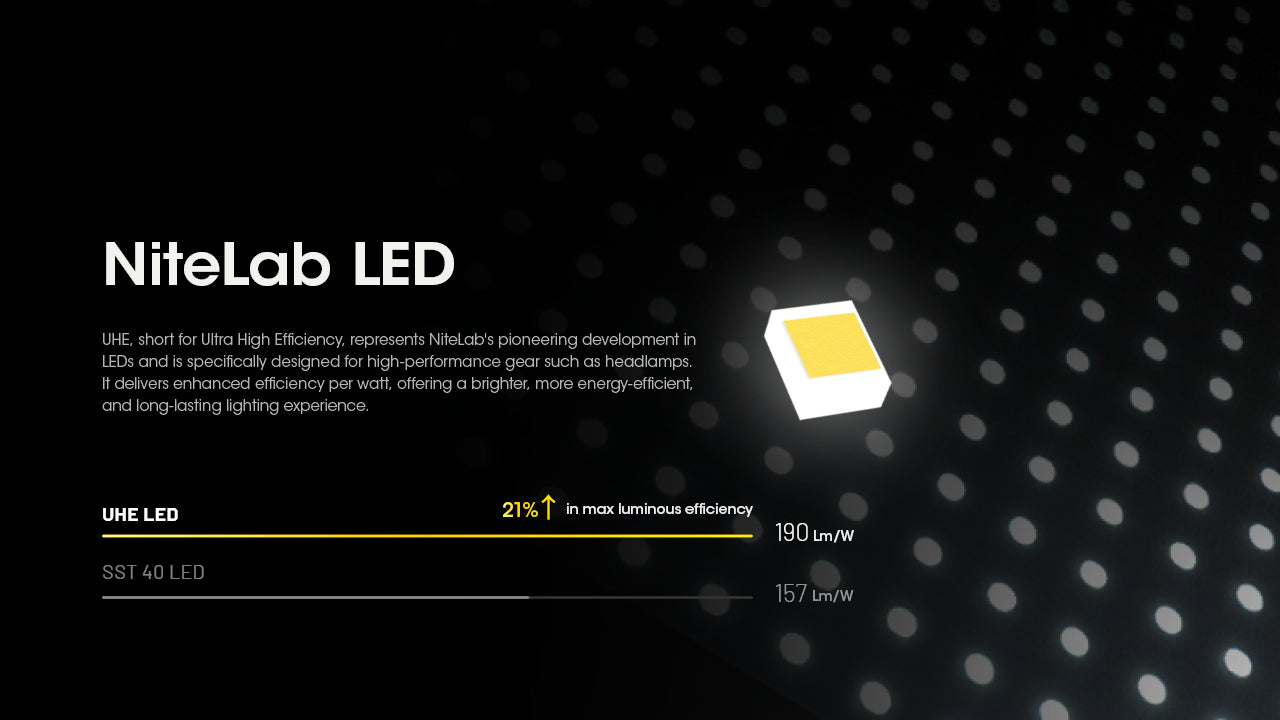

6 NiteLab UHE LEDs and Exceptional Runtime

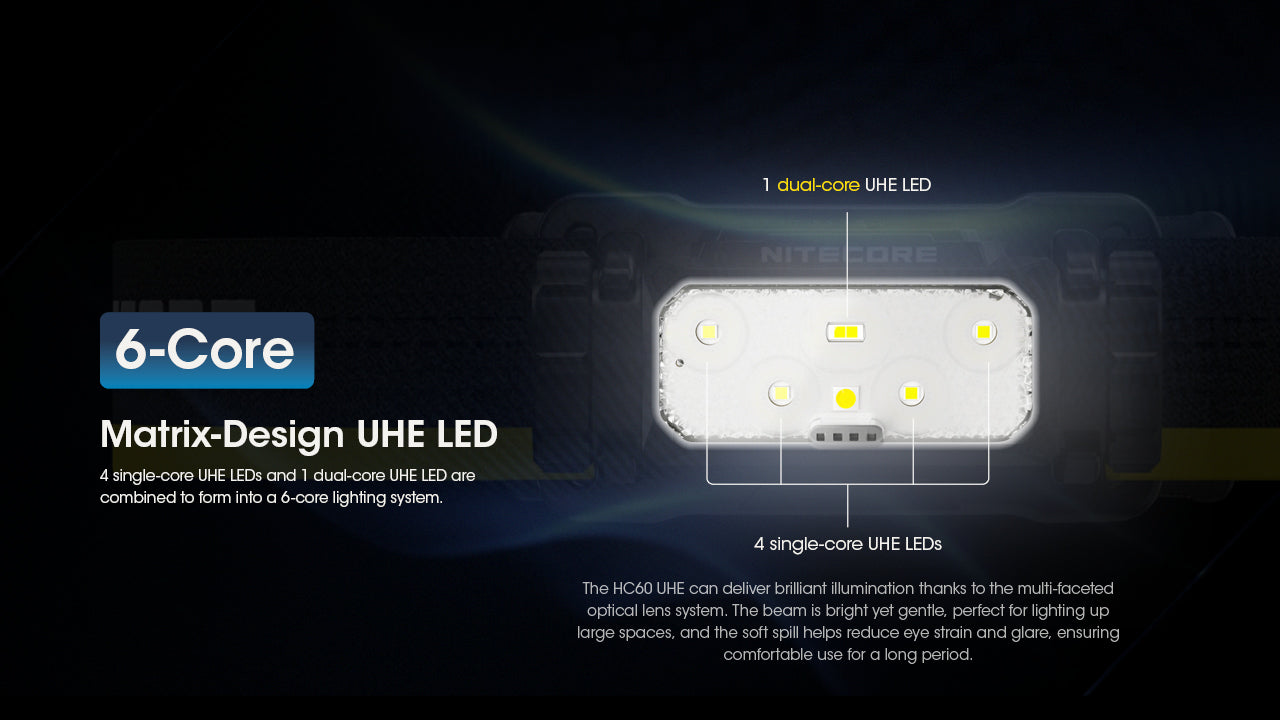

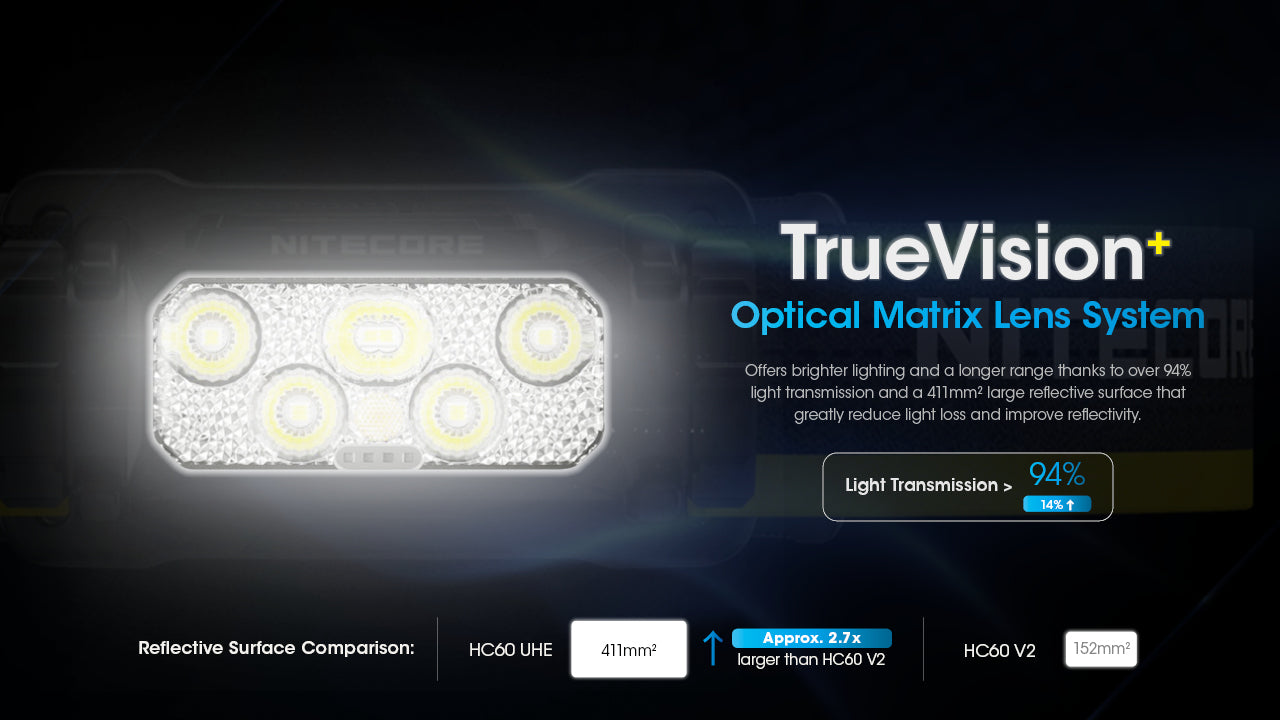

The 6 NiteLab UHE LED system offers optimal power of 1600 lumens with maximum energy efficiency, ideal for powerful and long-lasting lighting. Its simplified dual button control (Power + Mode) allowing intuitive control of all functions. 5 primary white light levels and 3 red auxiliary light modes with SOS, Beacon and Slow Flash special modes. The Nitecore 18650 NL1840 4000mAh battery offers up to 200 hours of runtime with fast USB-C charging in 2 hours and direct priority external power capability.

Professional Construction and Extreme Durability

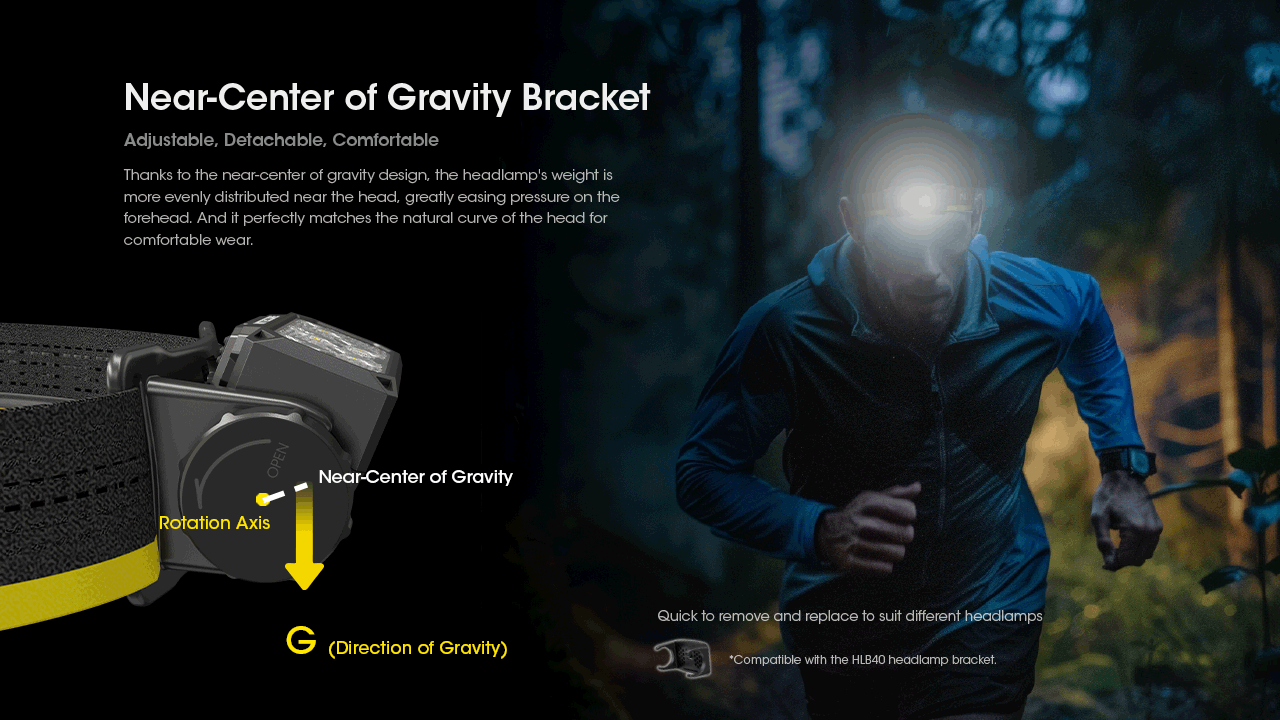

Designed to face the most demanding environments, the HC60 UHE combines aerospace-grade aluminum anodized HA III in a compact and ergonomic format. Whether you explore underground, hike in the mountains, or intervene on night missions — this headlamp takes everything thanks to its submersibility up to 2 meters (total protection against water and dust in prolonged immersion) and its resistance to drops from 2 meters. Its adjustable headband with stabilizing top strap ensures perfect hold during your movements, while its intelligent charging system allows continuous use on external power. A versatile companion you won't be able to do without — always ready, never bulky.

Operating Instructions

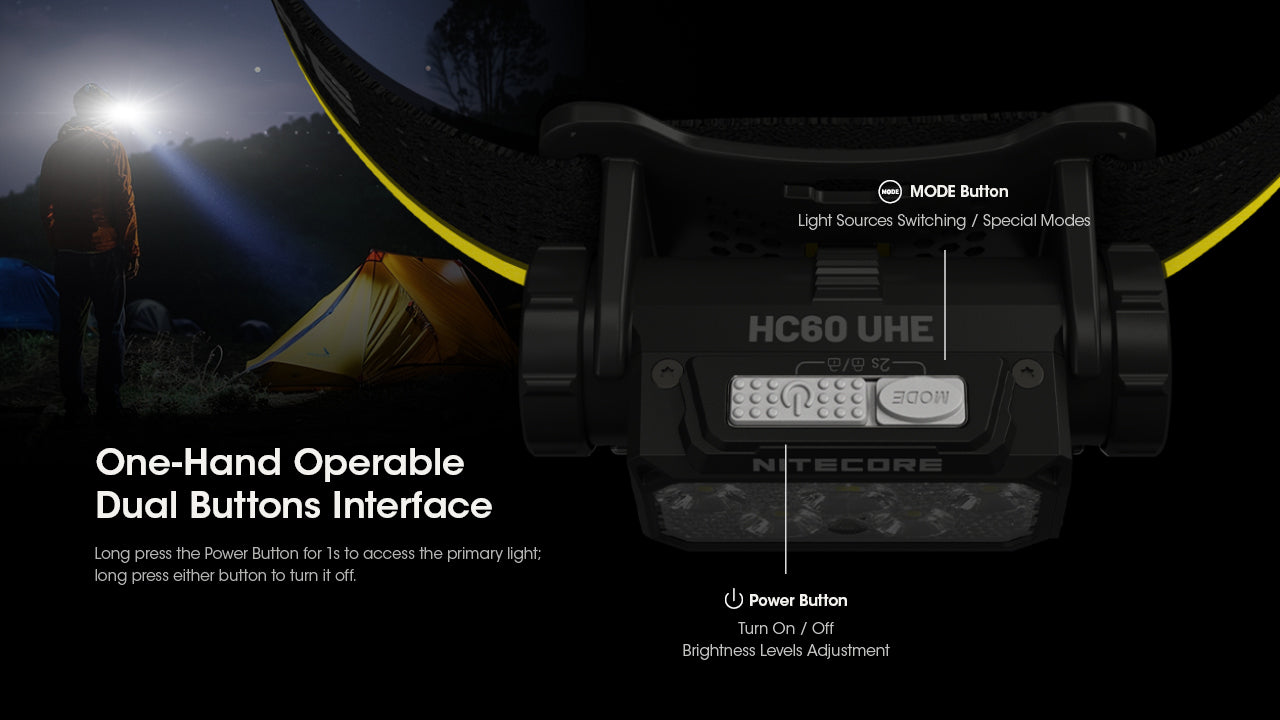

Control via two buttons: power button (ON/OFF and intensity adjustment) + MODE button (light source switching)

Power ON/OFF: When the light is off, hold the power button for 1 second to access LOW mode. When the light is on, hold the power button or MODE button for 1 second to turn it off.

Primary white light: From LOW, press the power button briefly to cycle through levels: LOW - MID - HIGH. Press the power button twice to access TURBO mode, press briefly to return to previous state. When the light is off, press the power button twice to access ULTRALOW.

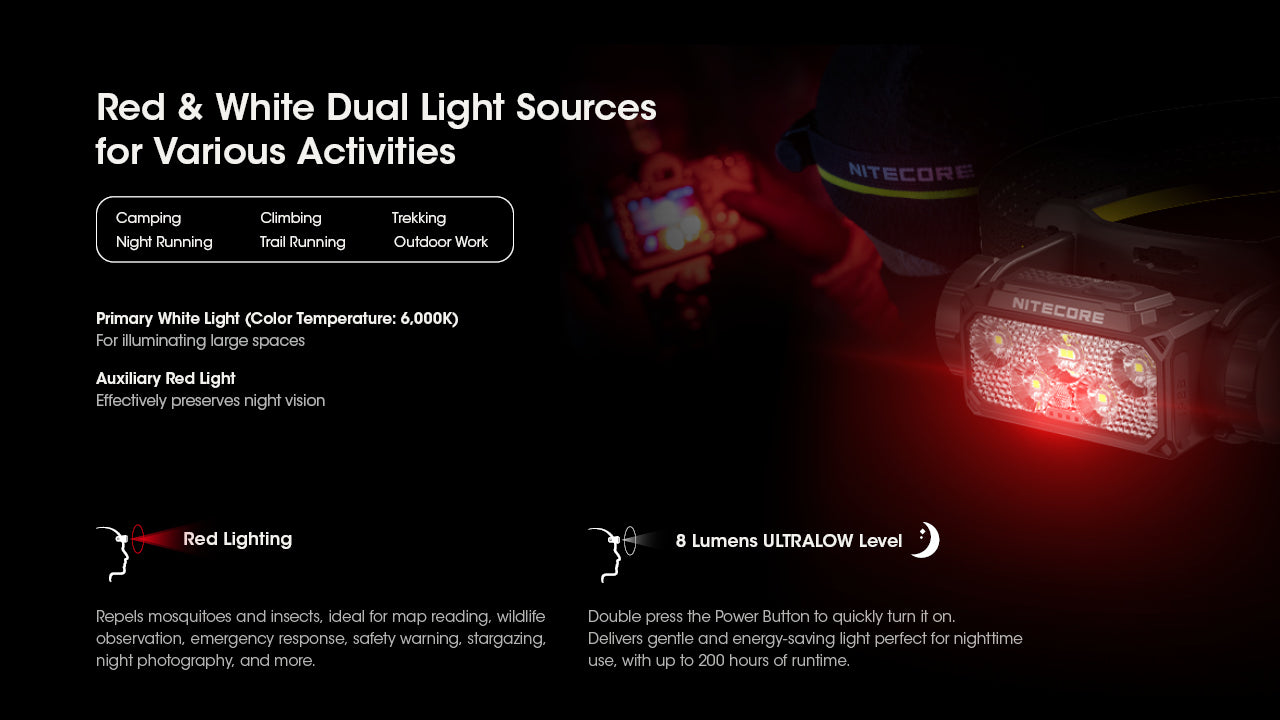

Auxiliary red light: When the light is off, hold the MODE button for 1 second to access red light LOW. Press the power button briefly to switch from Red LOW to Red HIGH.

Light source switching: When the light is on, press the MODE button briefly to switch from primary white light to auxiliary red light.

Special modes (SOS/Beacon/Slow Flash): Regardless of the lamp state, press the MODE button twice to access SOS mode. Press the power button briefly to cycle through: SOS - BEACON - SLOW FLASH, press the MODE button twice again to return to previous state.

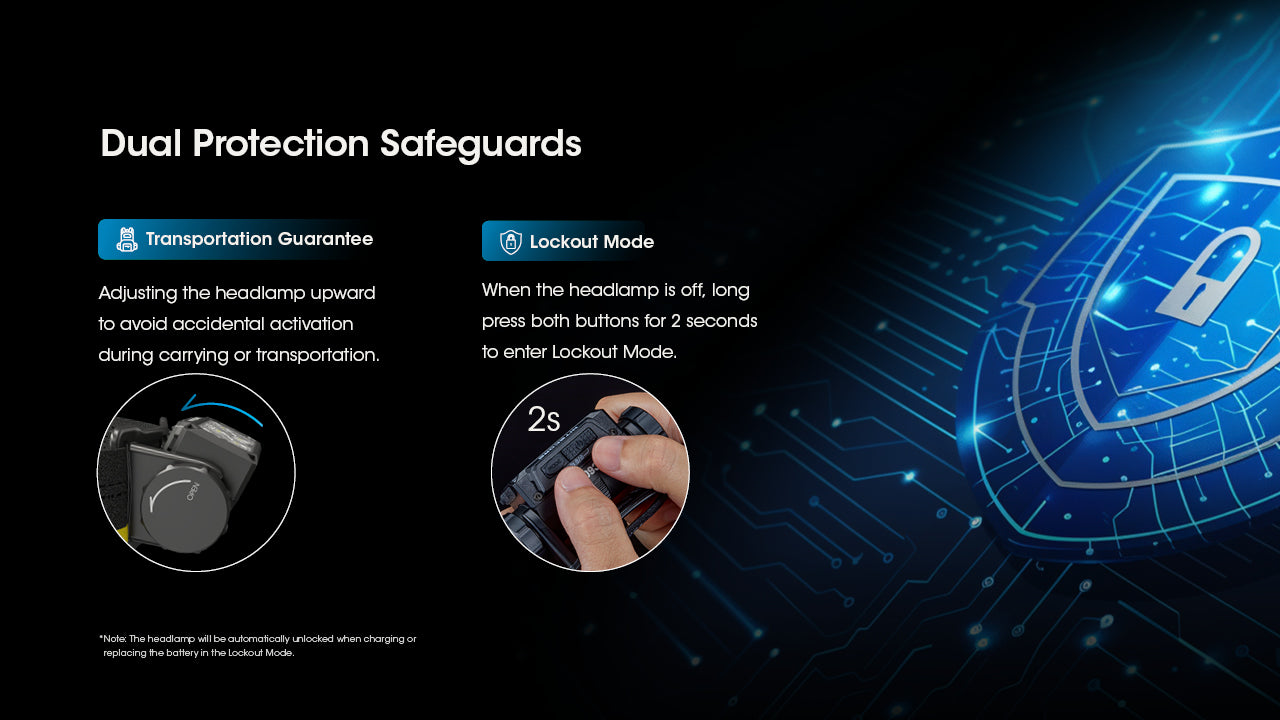

Lock/Unlock: When the lamp is off, hold both buttons for 2 seconds until the lamp flashes 3 times (locked). To unlock, hold both buttons again for 2 seconds until ULTRALOW mode activates.

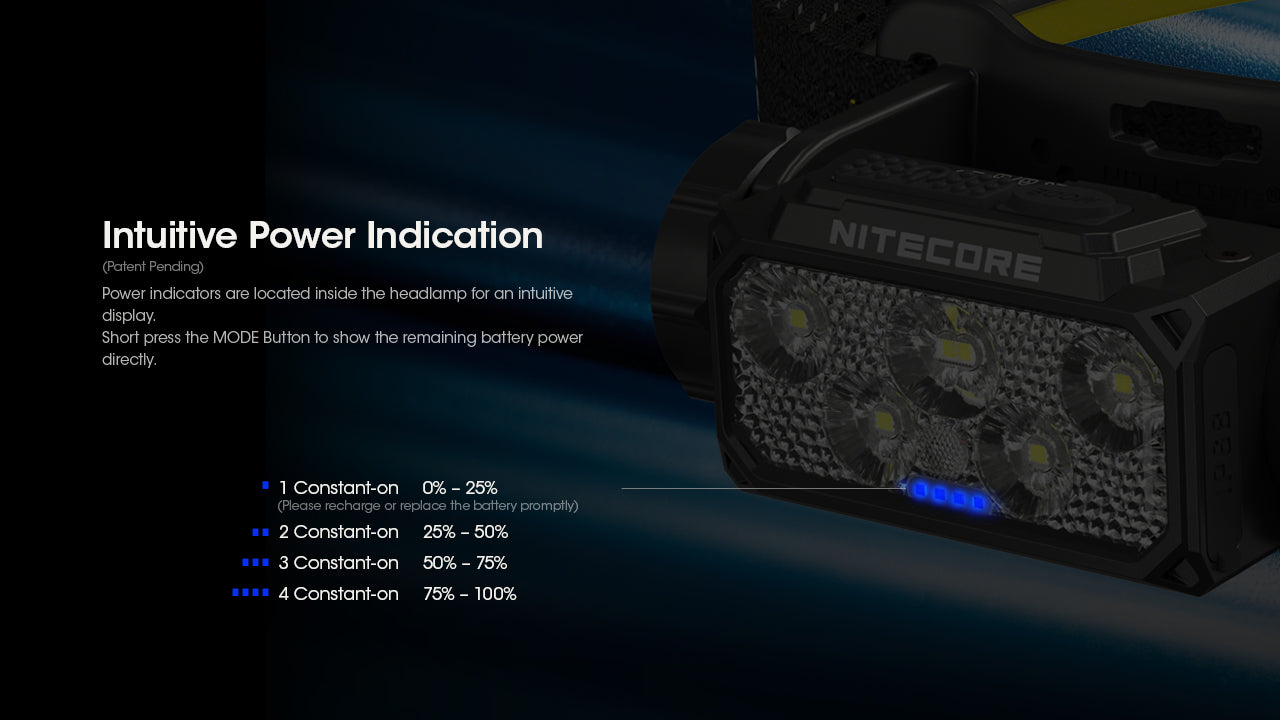

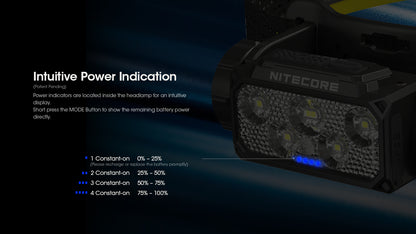

Battery indicators: When the light is off, press the MODE button briefly to display charge level via 4 indicators (4 constant = 75-100%, 3 constant = 50-75%, 2 constant = 25-50%, 1 constant = 0-25%).

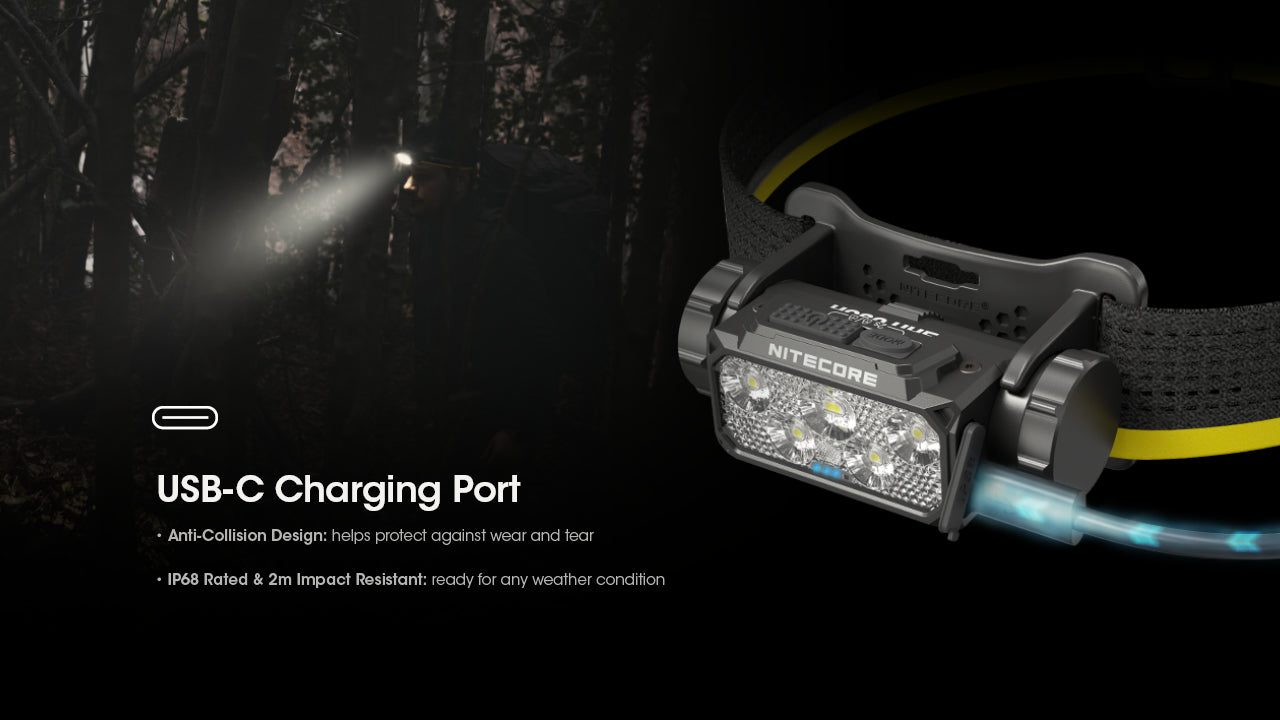

USB-C charging: Remove the USB protection cover and connect the USB-C cable to the charging port and to a power source (5V/2A adapter recommended). Indicators progressively switch from flashing to constant light. Charging time: approximately 2 hours. When the 4 indicators are constantly lit, the battery is fully charged.

Direct external power: The HC60 UHE can operate directly on an external power source which becomes priority. Connect the USB cable while the lamp is on (it flashes once to confirm). To disconnect, unplug the cable (the lamp flashes twice and switches to internal battery).

Battery installation/removal: Unscrew the battery cap, insert/remove the battery with the negative end facing the cap, then screw back.

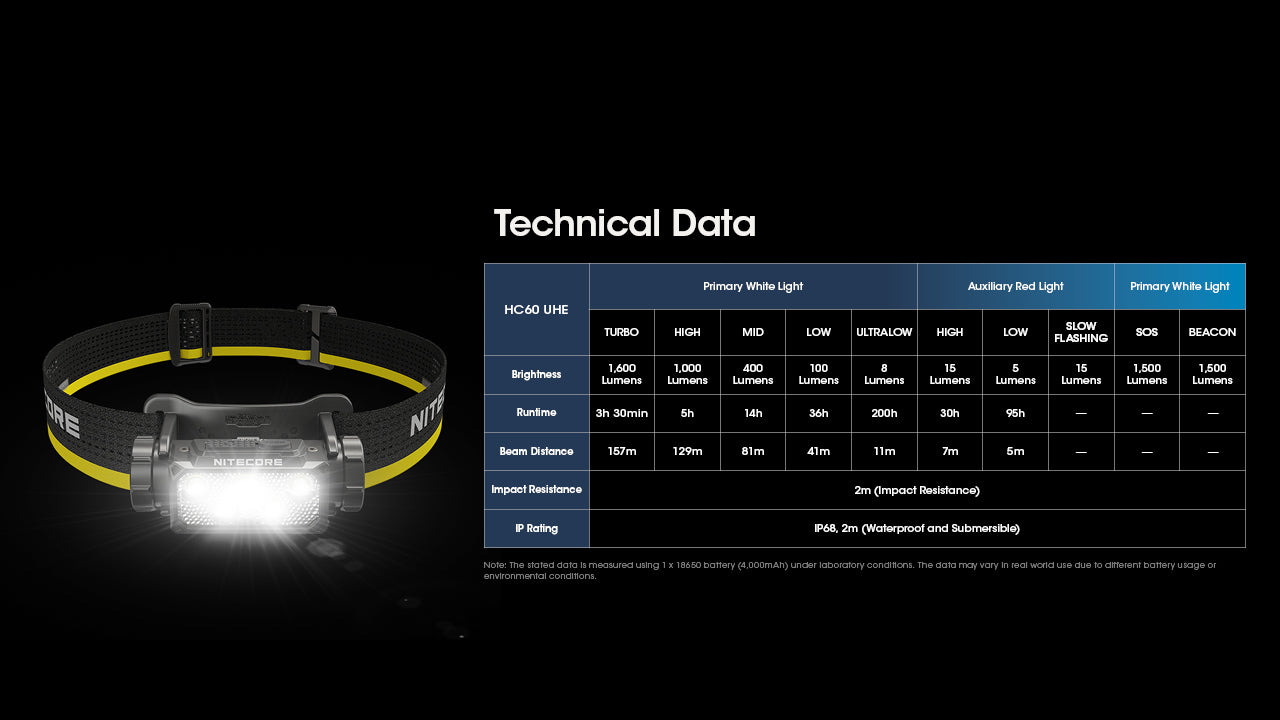

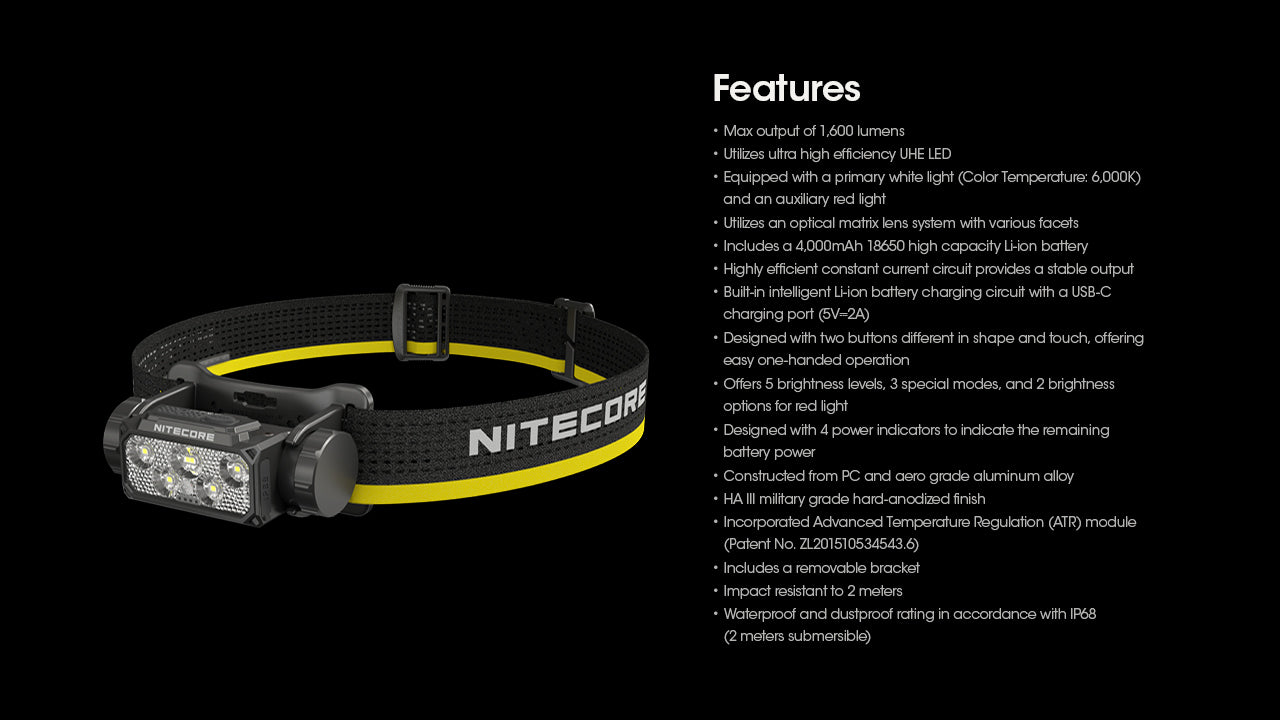

Specifications

• 6 NiteLab UHE LEDs, Red Auxiliary LEDs

With Nitecore 18650 NL1840 4000mAh Battery (included):

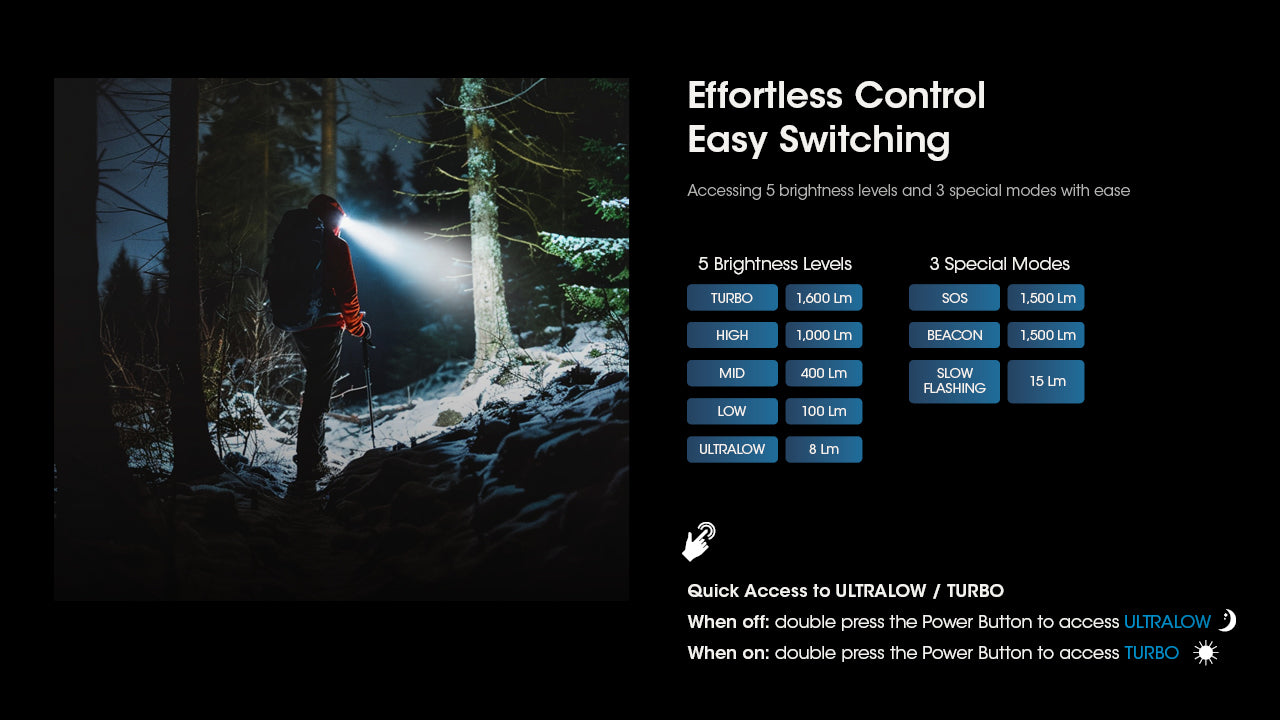

• 5 Primary White Light modes:

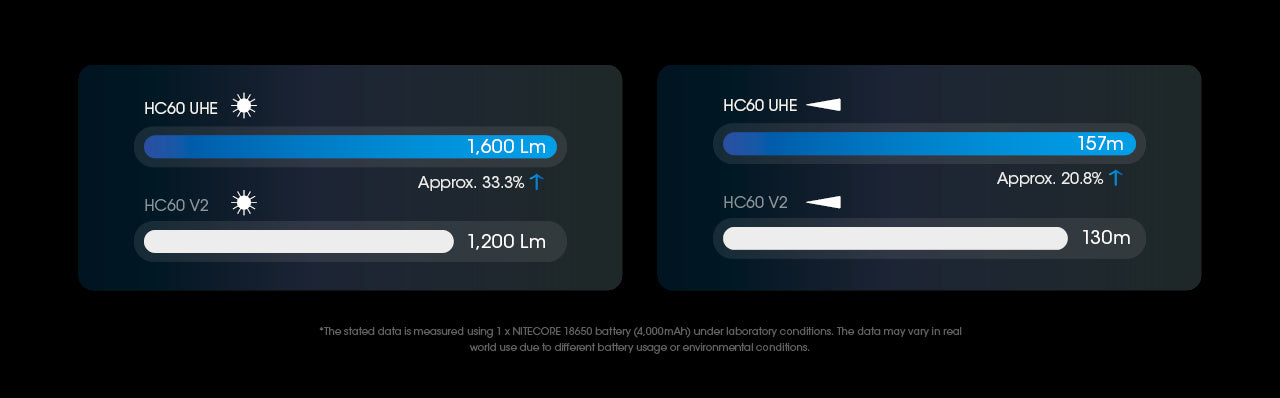

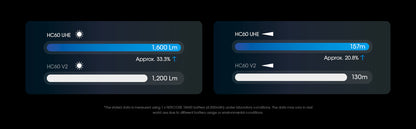

• TURBO: 1600 ANSI Lumens (3h30min) 515 feet / 157 meters
• HIGH: 1000 ANSI Lumens (5h) 423 feet / 129 meters
• MID: 400 ANSI Lumens (14h) 266 feet / 81 meters
• LOW: 100 ANSI Lumens (36h) 134 feet / 41 meters
• ULTRALOW: 8 ANSI Lumens (200h) 36 feet / 11 meters
• 3 Auxiliary Red Light modes: HIGH / LOW / SLOW FLASH
• Special Modes: SOS / BEACON / SLOW FLASH
• Power source: 1 Nitecore 18650 NL1840 4000mAh battery or 2 CR123A batteries
• Maximum runtime: 200 hours (Ultralow mode)
• Charging port: USB-C
• Charging time: 2 hours (with 5V/2A adapter)
• Charging indicator: 4 progressive LED indicators
• Battery indicator: 4 levels displayed
• Direct external power: Compatible with priority power source
• Materials: Aerospace-grade aluminum with military-grade hard anodized finish HA III
• Dimensions: 3.15" / 80mm (L) x 1.65" / 42mm (W) x 1.91" / 48.5mm (D)

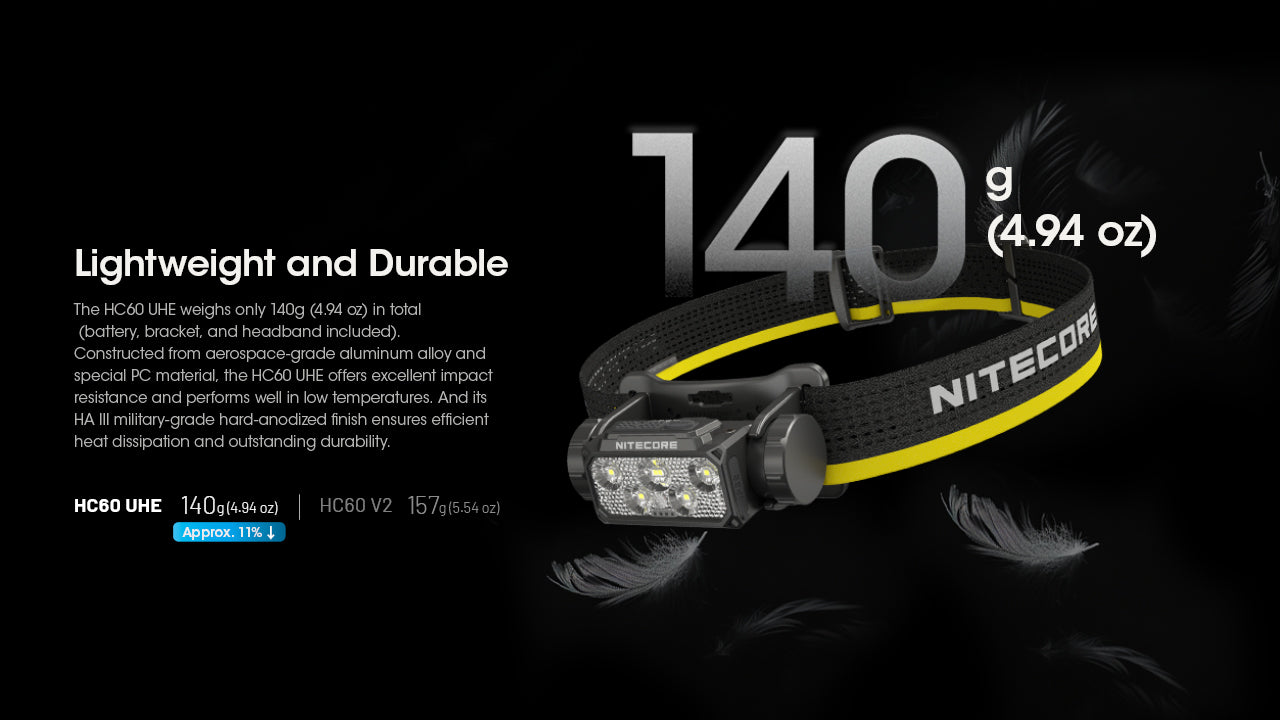

• Weight: 4.94oz / 140g (with battery)
• Impact resistance: 6.6 feet / 2 meters

Waterproof rating: IPX8 (submersible up to 2 meters)

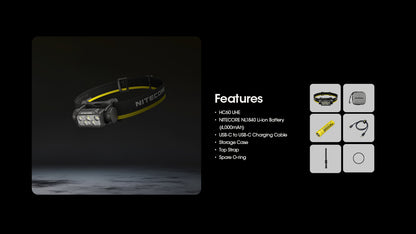

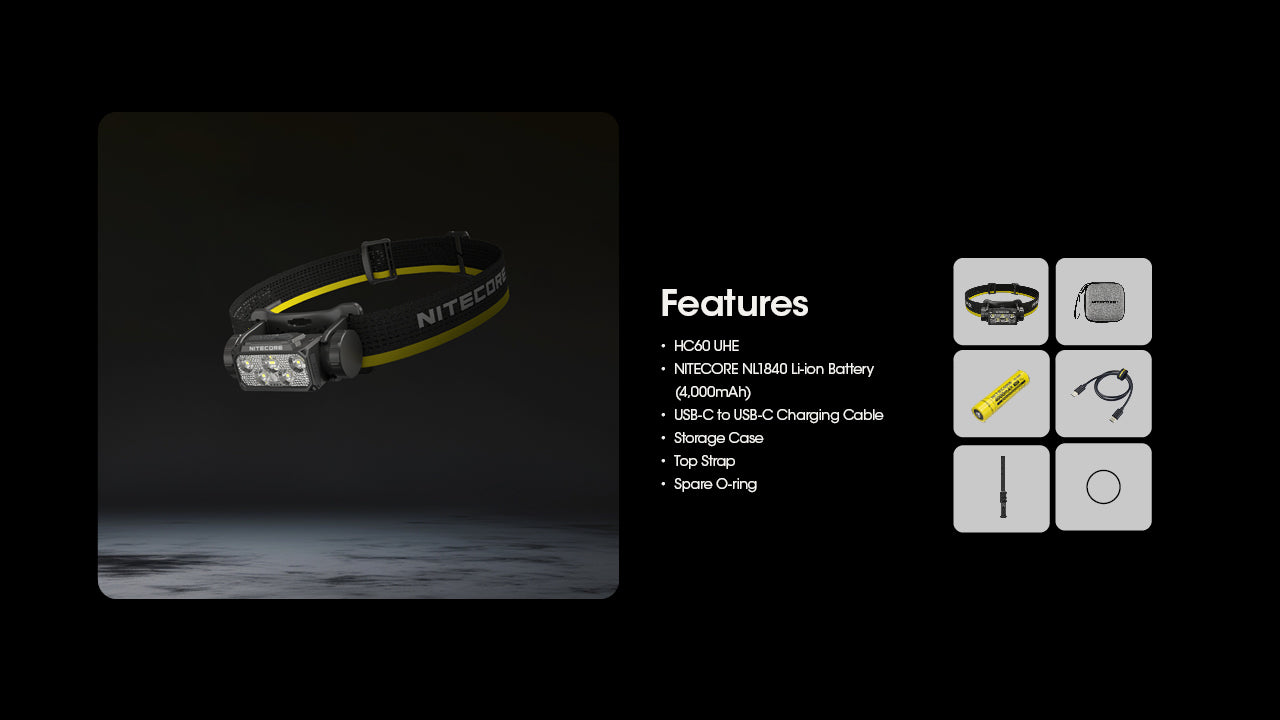

Box Contents

• 1 Nitecore HC60 UHE Headlamp
• 1 Nitecore 18650 NL1840 4000mAh Battery
• 1 USB-C Cable
• 1 Elastic headband
• 1 Stabilizing top strap
• 1 Spare O-ring

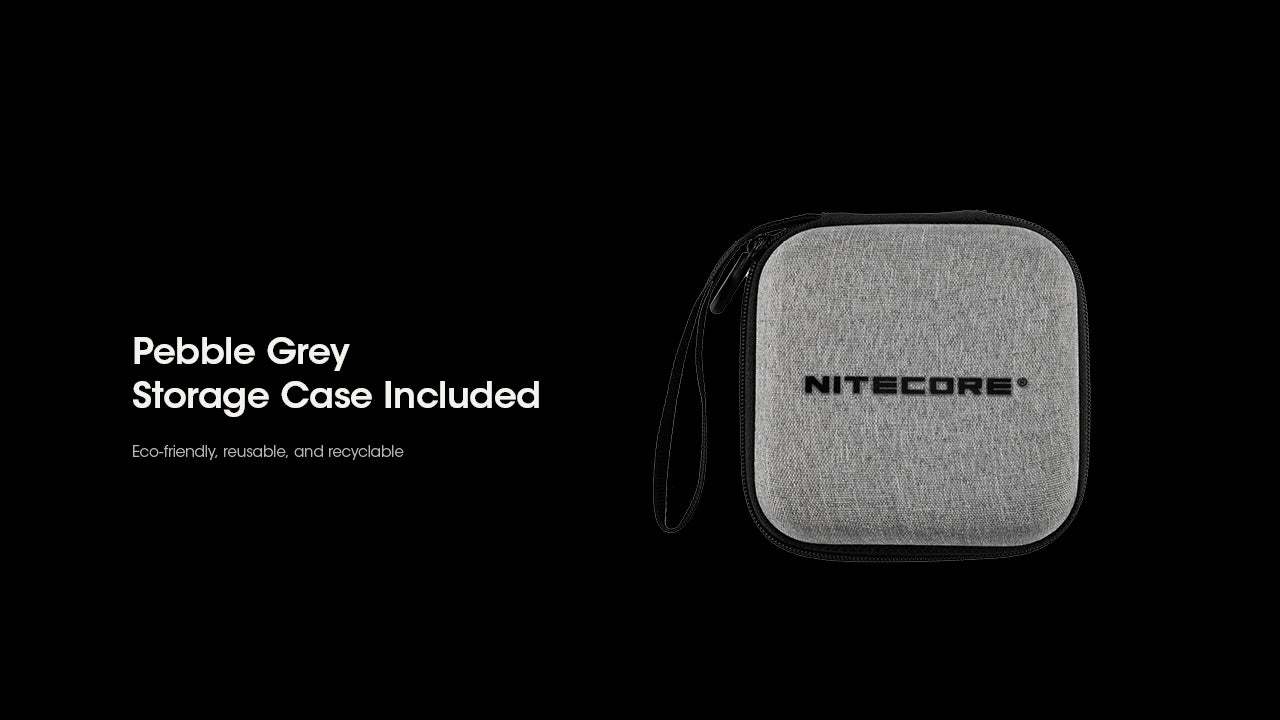

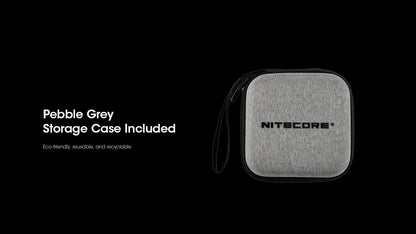

• 1 Storage pouch
• 1 User manual
