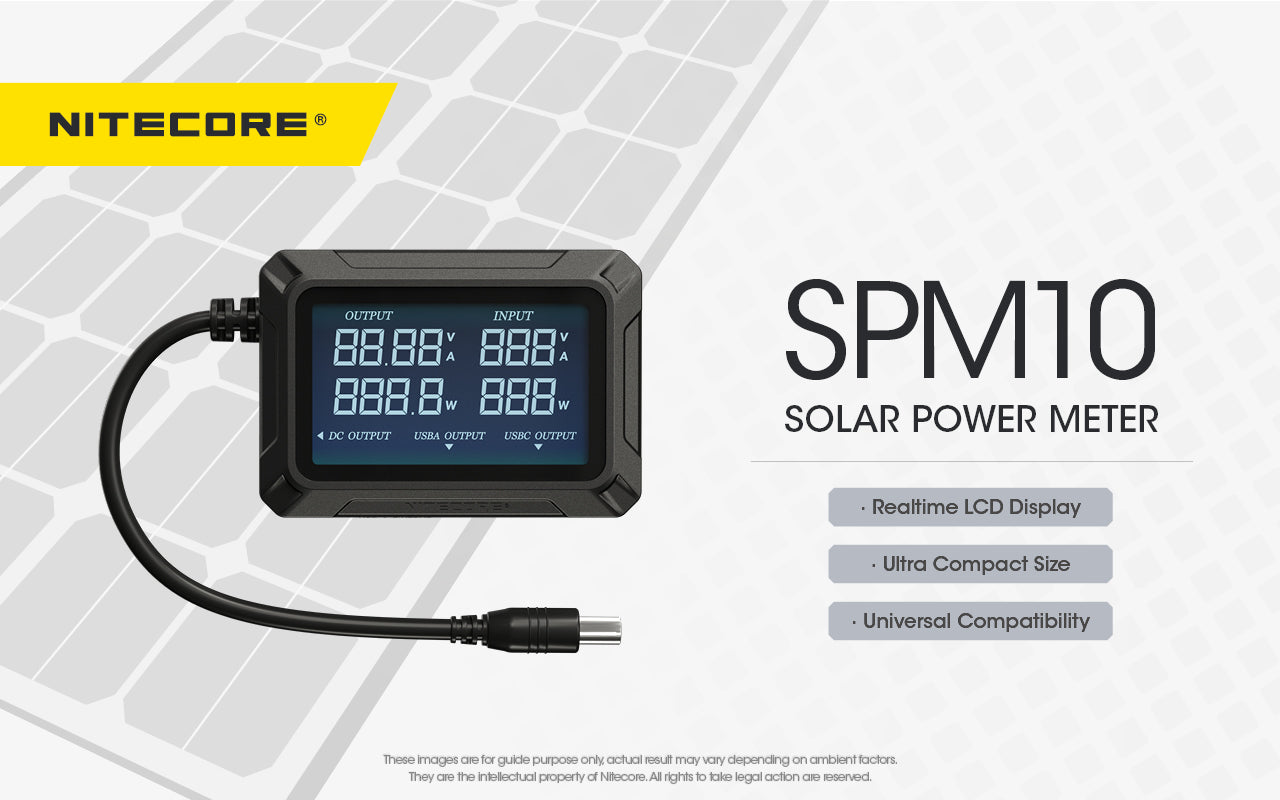

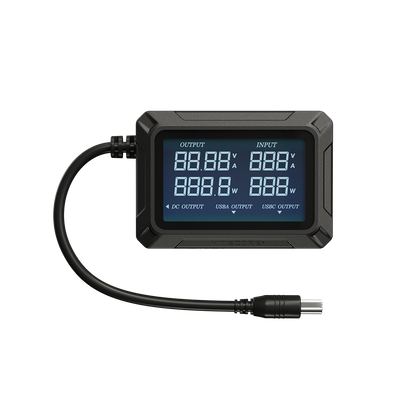

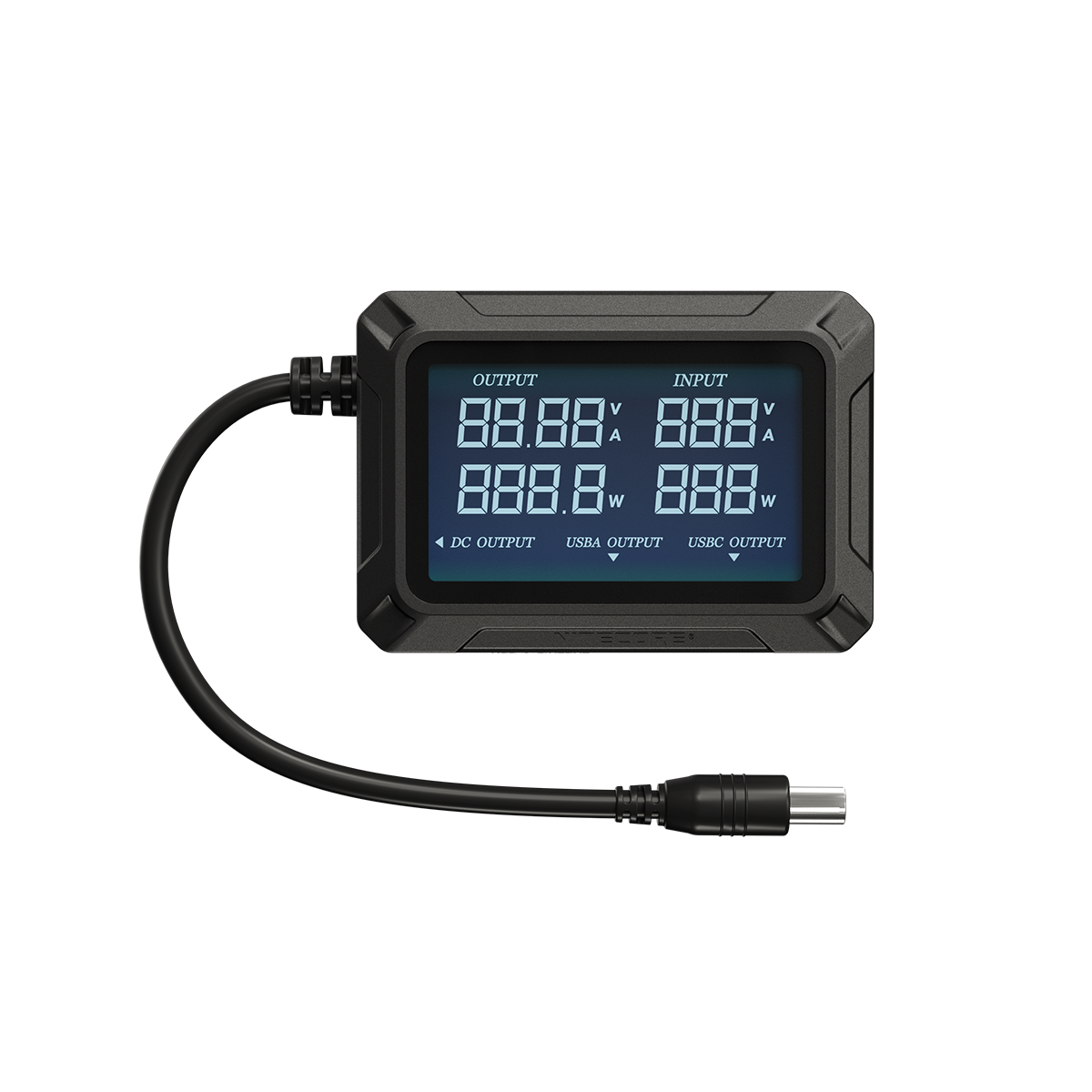

Nitecore SPM10 Solar Power Meter - Real-Time LCD Display - USB-C

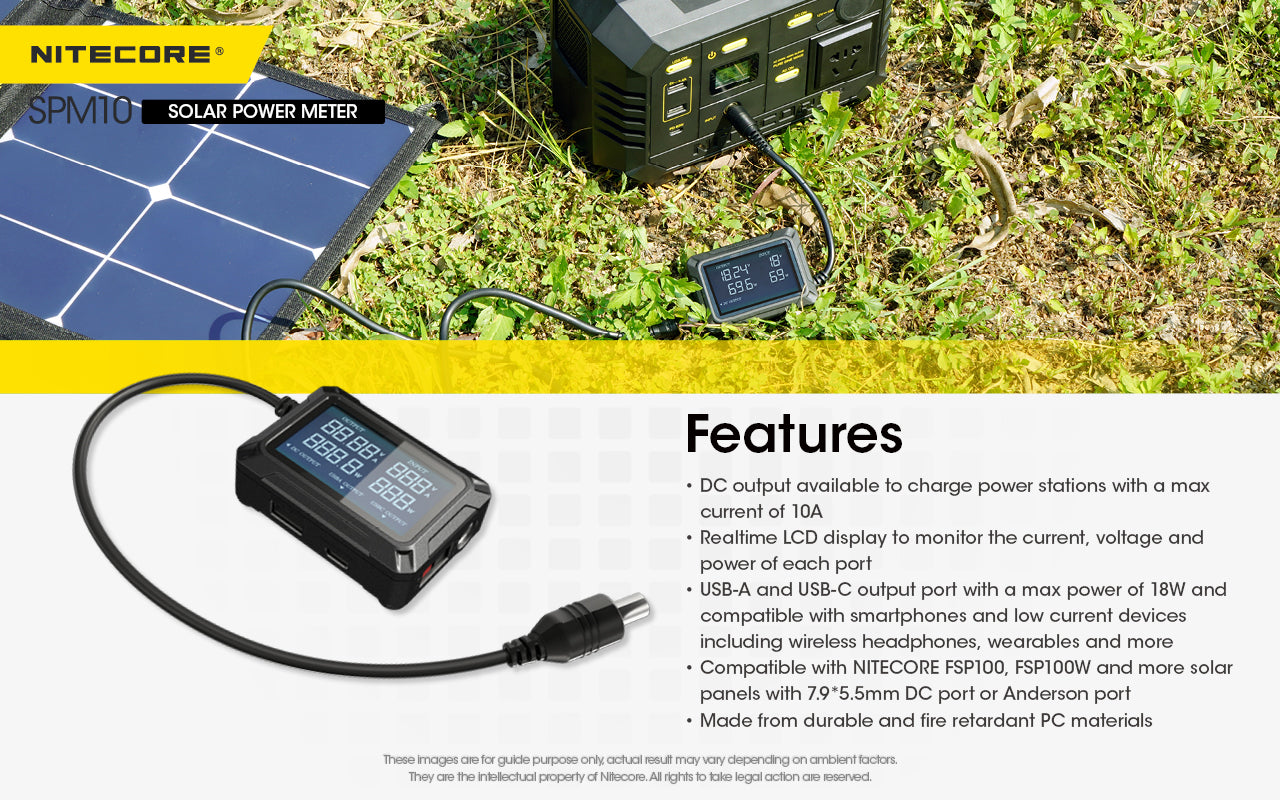

The Nitecore SPM10 Solar Power Meter allows you to monitor voltage, current and power in real time from your solar panels and equipment, ideal for optimizing your solar installation and monitoring charging performance. Equipped with an LCD screen simultaneously displaying input and output data, it provides precise control of your energy system. Ultra-compact and lightweight, this 3.42oz wattmeter made from fire-retardant PC materials combines precision and practicality for all your portable solar installations.

Real-Time LCD Display and Versatile Ports

The real-time monitoring system with LCD screen displays simultaneously voltage (V), current (A) and power (W) for each port, ideal for accurately monitoring your solar panel performance and device charging efficiency. The DC and Anderson input ports accept 9-24V 10A allowing connection of Nitecore FSP100, FSP100W solar panels and other compatible panels. The USB-A and USB-C output ports deliver up to 18W (5V/3A, 9V/2A, 12V/1.5A) to charge smartphones, wireless headphones, wearables and other low-current devices, while the 9-24V 10A DC output enables charging power stations with a maximum current of 10A.

Compact Construction and Universal Compatibility

Designed for easy integration into any portable solar system, the SPM10 combines durable and fire-retardant PC materials in an ultra-compact format of only 2.95 inches length. Solar camping, mobile installations, performance monitoring, this device integrates perfectly thanks to its universal compatibility with solar panels equipped with DC 7.9 x 5.5mm or Anderson ports. The two INPUT1 and INPUT2 input ports allow you to connect multiple power sources or compare the performance of different panels, while the real-time LCD screen instantly displays all essential data to optimize your configuration. With 3 simultaneous output ports (DC, USB-A, USB-C) and only 3.42oz, it becomes that essential monitoring tool — always accurate, never bulky. Total compatibility with Nitecore FSP100/FSP100W panels and NPS200, NPS400, NPS600, NES300, NES500, NES1200 stations guarantees perfect integration into the Nitecore ecosystem.

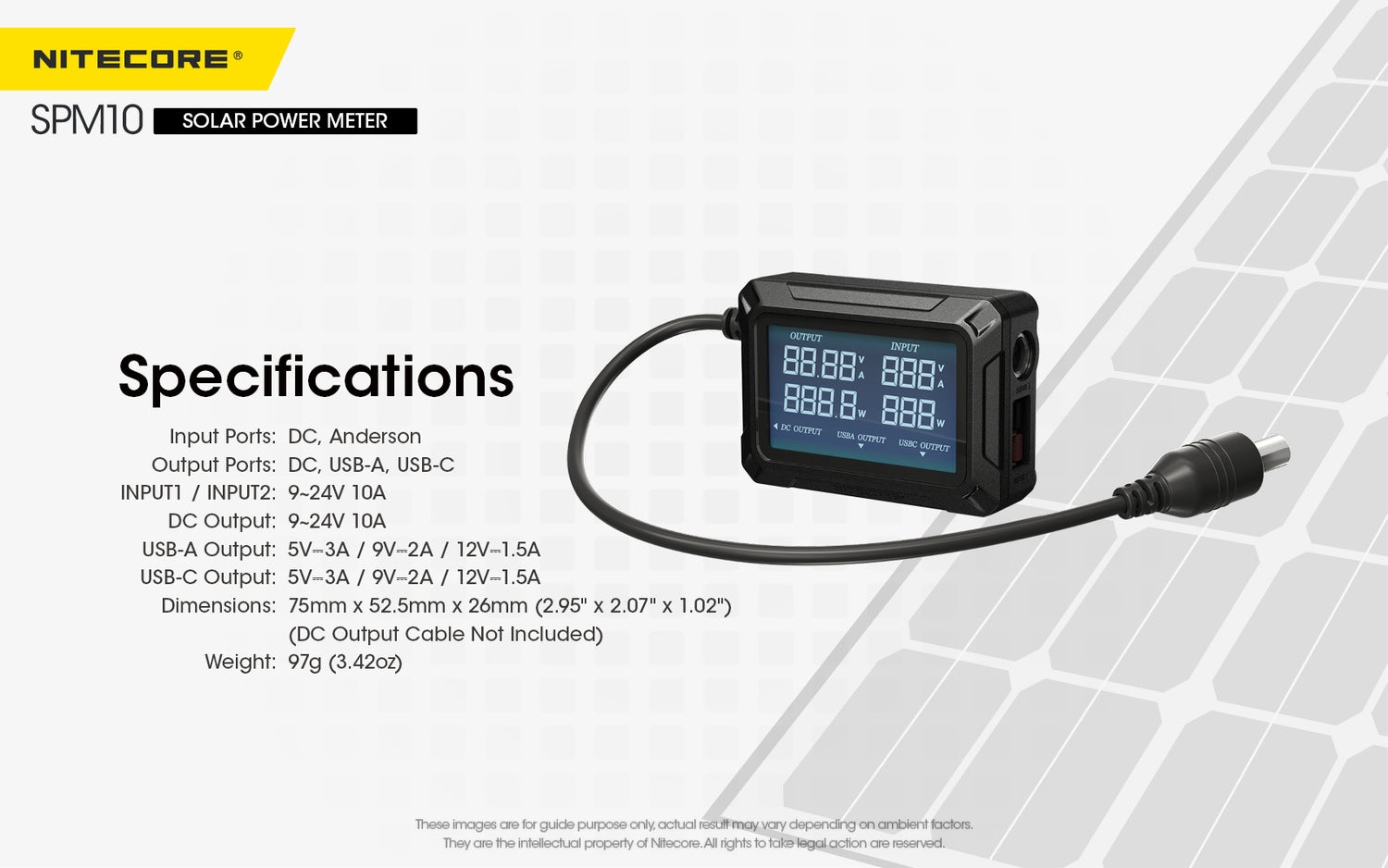

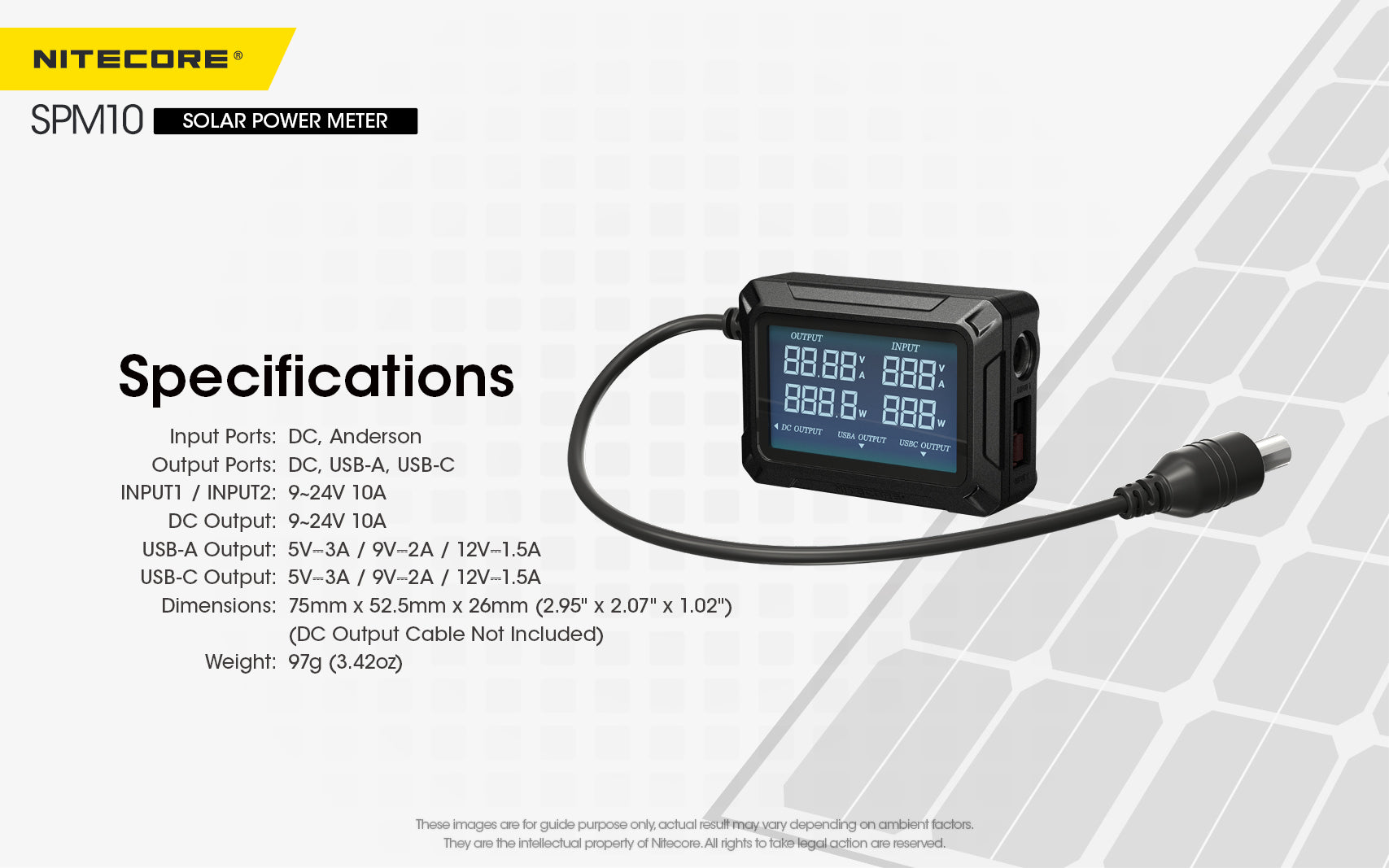

Specifications

• Input Ports: DC, Anderson
• Output Ports: DC, USB-A x2, USB-C x1
• INPUT1 / INPUT2: 9-24V 10A
• DC Output: 9-24V 10A (maximum current for power stations)
• USB-A Output: 5V/3A, 9V/2A, 12V/1.5A (18W MAX per port)
• USB-C Output: 5V/3A, 9V/2A, 12V/1.5A (18W MAX)
• LCD Display: Real-time display of voltage, current and power for each port
• Solar panel compatibility: Nitecore FSP100, FSP100W and other panels with DC 7.9 x 5.5mm or Anderson port

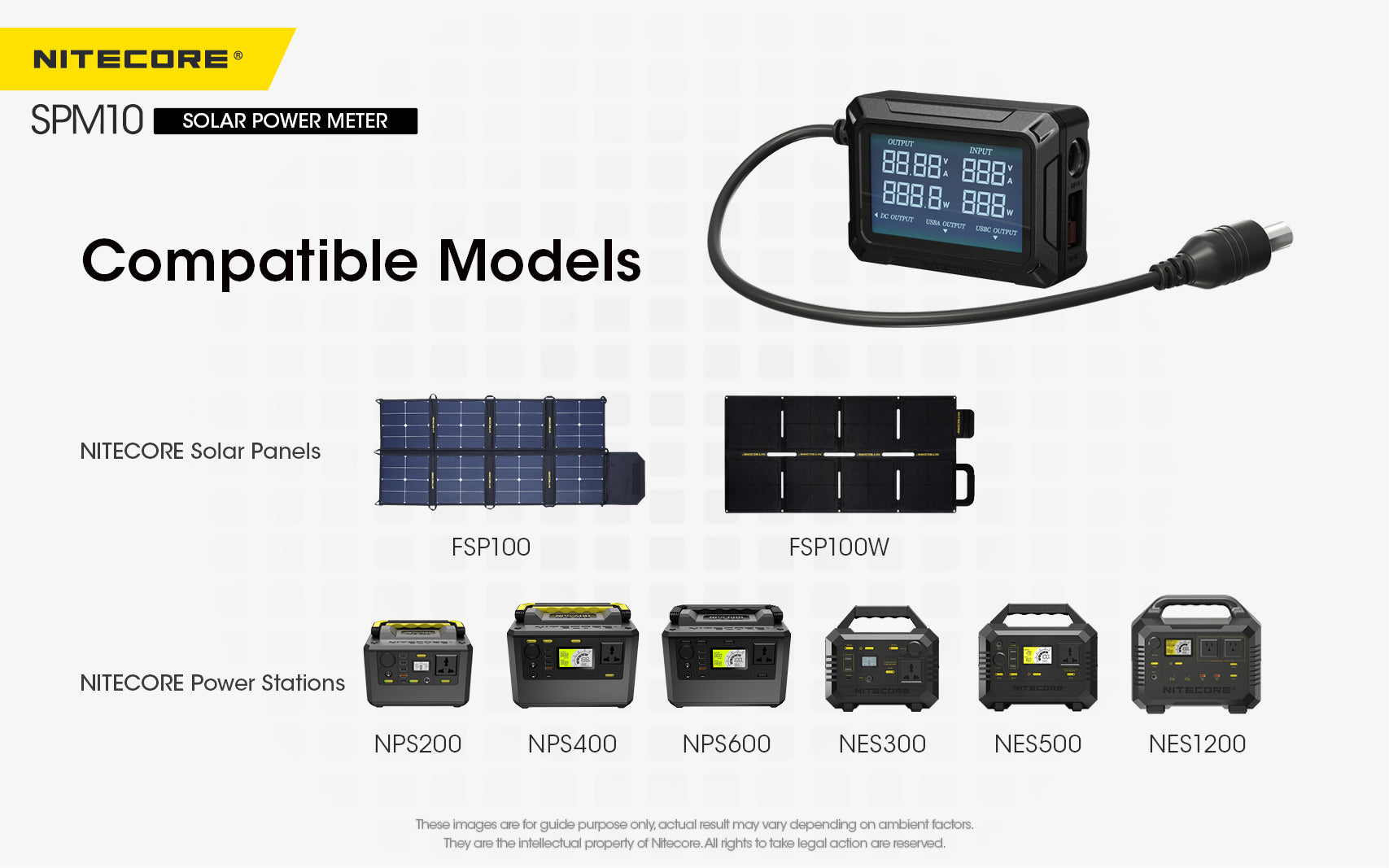

• Power station compatibility: Nitecore NPS200, NPS400, NPS600, NES300, NES500, NES1200
• Simultaneous charging: All output ports can operate simultaneously
• Materials: Durable and fire-retardant PC
• Dimensions: 2.95" / 75mm (L) x 2.07" / 52.5mm (W) x 1.02" / 26mm (H)
• Weight: 3.42oz / 97g
• Note: DC output cable not included
• Warranty: 1 year

Box Contents

• 1 SPM10 Solar Power Meter
• 1 User manual
